Product Summary
The MT48LC4M16A2TG-8E is a synchronous DRAM.
Parametrics
MT48LC4M16A2TG-8E absolute maximum ratings: (1)Voltage on VDD, VDDQ Supply Relative to VSS: -1V to +4.6V; (2)Voltage on Inputs, NC or I/O Pins Relative to VSS: -1V to +4.6V; (3)Operating Temperature, TA (commercial): 0°C to +70°C; (4)Operating Temperature, TA (extended; IT parts): -40°C to +85°C; (5)Storage Temperature (plastic): -55°C to +150°C; (6)Power Dissipation: 1W.
Features
MT48LC4M16A2TG-8E features: (1)PC66-, PC100-, and PC133-compliant; (2)Fully synchronous; all signals registered on positive edge of system clock; (3)Internal pipelined operation; column address can be changed every clock cycle; (4)Internal banks for hiding row access/precharge; (5)Programmable burst lengths: 1, 2, 4, 8, or full page; (6)Auto Precharge, includes CONCURRENT AUTO PRECHARGE, and Auto Refresh Modes; (7)Self Refresh Modes: standard and low power; (8)64ms, 4,096-cycle refresh; (9)LVTTL-compatible inputs and outputs; (10)Single +3.3V ±0.3V power supply.

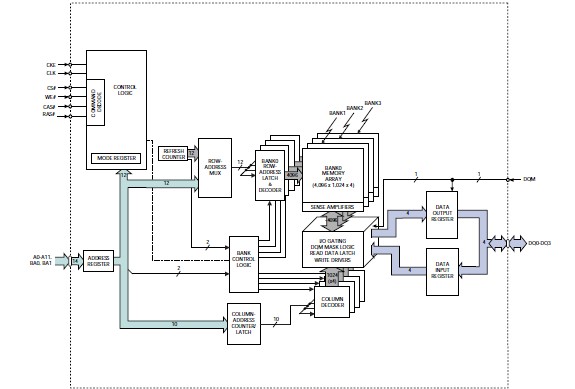

Diagrams
