74HC541D

74HC541D, octal 3-state noninverting buffer/line driver/line receiver, 7.0 V, 35 mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	0.20 / Piece

PartNumber:: 74HC541D

Brand:: NXP - NXP | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-25

From Other Seller

Part Number:74HC541D
US $0.20 - 0.20
74HC541D

US $0.01 - 0.02 / Piece
(0) Remove
Quantity:

piece

Product Summary

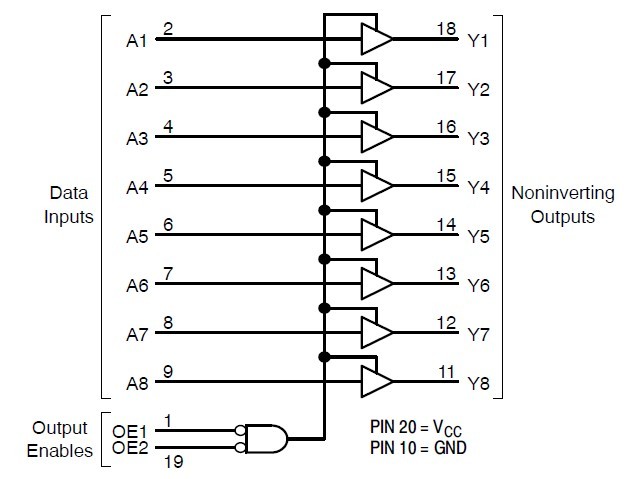

The 74HC541D is an octal 3-state noninverting buffer/line driver/line receiver. The 74HC541D is designed to be used with 3-state memory address drivers, clock drivers, and other bus-oriented systems. This device features inputs and outputs on opposite sides of the package and two ANDed active-low output enables. The 74HC541D is similar in function to the HC540A, which has inverting outputs.

Parametrics

74HC541D absolute maximum ratings: (1)VCC DC Supply Voltage: -0.5 to +7.0 V; (2)VI DC Input Voltage: -0.5 ≤ VI ≤ VCC+0.5 V; (3)VO DC Output Voltage: -0.5 ≤ VO ≤ VCC+0.5 V; (4)IIK DC Input Diode Current: ±20 mA; (5)IOK DC Output Diode Current: ±35 mA; (6)IO DC Output Sink Current: ±35 mA; (7)ICC DC Supply Current per Supply Pin: ±75 mA; (8)IGND DC Ground Current per Ground Pin: ±75 mA; (9)TSTG Storage Temperature Range: -65 to +150 ℃; (10)TL Lead Temperature, 1 mm from Case for 10 Seconds: 260 ℃.

Features

74HC541D features: (1)Output Drive Capability: 15 LSTTL Loads; (2)Outputs Directly Interface to CMOS, NMOS and TTL; (3)Operating Voltage Range: 2.0 to 6.0 V; (4)Low Input Current: 1 μA; (5)High Noise Immunity Characteristic of CMOS Devices; (6)In Compliance With the JEDEC Standard No. 7A Requirements; (7)Chip Complexity: 134 FETs or 33.5 Equivalent Gates; (8)Pb-Free Packages are Available.
