Product Summary

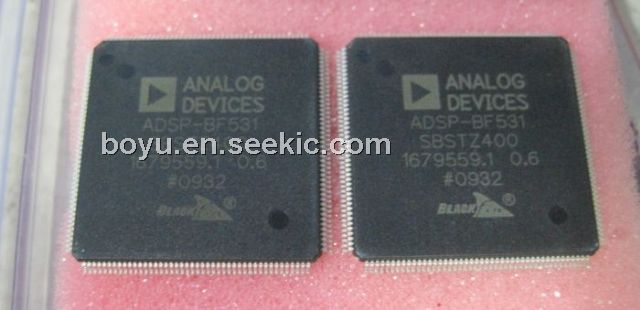

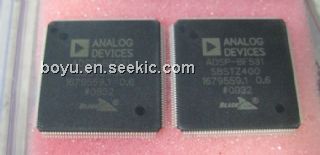

The ADSP-BF531SBSTZ400 is a Blackfin Embedded Processor. It combines a dual-MAC state-of-the-art signal processing engine, the advantages of a clean, orthogonal RISClike microprocessor instruction set, and single instruction, multiple data (SIMD) multimedia capabilities into a single instruction set architecture. The ADSP-BF531SBSTZ400 is completely code and pin-compatible, differing only with respect to their performance and on-chip memory.

Parametrics

ADSP-BF531SBSTZ400 absolute maximum ratings: (1)Internal (Core) Supply Voltage (VDDINT): -0.3 V to +1.45 V; (2)External (I/O) Supply Voltage (VDDEXT): -0.5 V to +3.8 V; (3)Input Voltage: -0.5 V to +3.8 V; (4)Output Voltage Swing: -0.5 V to VDDEXT + 0.5 V; (5)Storage Temperature Range: -65 ℃ to +150 ℃; (6)Junction Temperature While Biased: 125 ℃.

Features

ADSP-BF531SBSTZ400 features: (1)Up to 400MHz high performance Blackfin processor: Two 16-bit MACs, two 40-bit ALUs, four 8-bit video ALUs, 40-bit shifter; RISC-like register and instruction model for ease of programming and compiler-friendly support; Advanced debug, trace, and performance monitoring; (2)0.8 V to 1.2 V core VDD with on-chip voltage regulation; (3)1.8 V, 2.5 V, and 3.3 V compliant I/O; (4)160-ball mini-BGA, 169-ball lead free PBGA, and 176-lead LQFP packages.

Diagrams

ADSP-BF531SBSTZ400 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADSP-BF531SBSTZ400
ADSP-BF531SBSTZ400


IC DSP CTLR 16BIT 400MHZ 176LQFP

Data Sheet

0-1: $10.57
1-10: $9.61
10-100: $8.17
100-250: $7.45
250-500: $6.97
500-1000: $6.41
