Product Summary
The IS62LV256-70T is a very high-speed, low power, 32,768-word by 8-bit static RAM. The IS62LV256-70T is fabricated using ISSIs high-performance CMOS double-metal technology. When CE is HIGH (deselected), the IS62LV256-70T assumes a standby mode at which the power dissipation is reduced to 10 μW (typical) with CMOS input levels.
Parametrics
IS62LV256-70T absolute maximum ratings: (1)VTERM Terminal Voltage with Respect to GND: –0.5 to +4.6 V; (2)TBIAS Temperature Under Bias: –55 to +125 °C; (3)TSTG Storage Temperature: –65 to +150 °C; (4)PT Power Dissipation: 0.5 W; (5)IOUT DC Output Current (LOW): 20 mA.
Features
IS62LV256-70T features: (1)Access time: 45, 70 ns; (2)Low active power: 70 mW; (3)Low standby power: 45 μW CMOS standby; (4)Fully static operation: no clock or refresh required; (5)TTL compatible inputs and outputs; (6)Single 3.3V power supply.

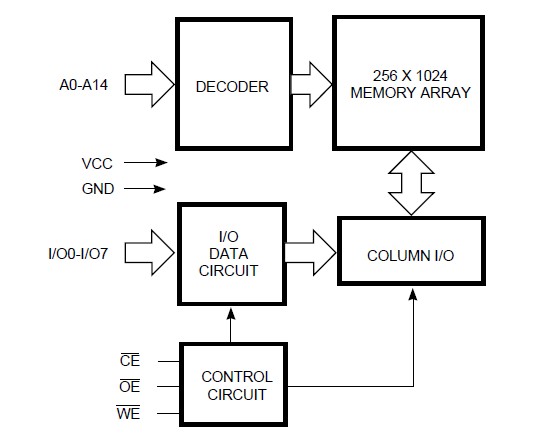

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 IS62LV256-70T |
ISSI |
SRAM 256K 32Kx8 70ns 3.3v |
Data Sheet |
Negotiable |
|
||||
|
IS62LV256-70TI |
ISSI |
SRAM 256K 32Kx8 70ns 3.3v |
Data Sheet |
Negotiable |
|
||||
|
IS62LV256-70TI-TR |
ISSI |
SRAM 256K 32Kx8 70ns 3.3v |
Data Sheet |
Negotiable |
|
||||
|
IS62LV256-70T-TR |
ISSI |
SRAM 256K 32Kx8 70ns 3.3v |
Data Sheet |
Negotiable |
|
||||
