Product Summary

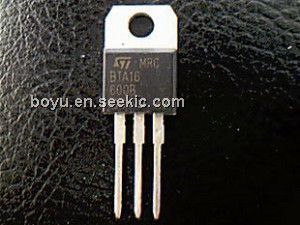

The BTA16-600 is a standard triac. The BTA16-600 is fully isolated package suitable for AC switching application, phase control application such as speed and temperature modulation control, industrial and domestic lighting control and static switching relay. The BTA16-600 may substitute for BTA16-600, BTB16-600, BT139-600, BCR16PM-12, TM1661M/S-L series.
Parametrics
BTA16-600 absolute maximum ratings: (1)VDRM Repetitive Peak Off-State Voltage Sine wave, 50 to 60 Hz: 600 V; (2)IT(RMS)R.M.S On-State Current Tj = 125 °C, Full Sine wave: 16 A; (3)ITSM Surge On-State Current One Cycle, 50Hz/60Hz, Peak, Non-Repetitive: 160/168 A; (4)I2t I2t tp =10ms: 128 A2s; (5)PG(AV)Average Gate Power Dissipation Tj=125°C: 1 W; (6)IGM Peak Gate Current Tj=125°C: 2 A; (7)TJ Operating Junction Temperature: - 40 ~ 125 °C; (8)TSTG Storage Temperature: - 40 ~ 150 °C.
Features
BTA16-600 features: (1)Repetitive Peakk Off-State Voltage : 600V; (2)R.M.S On-State Current ( IT(RMS)= 16 A ); (3)High Commutation dv/dt.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BTA16-600B |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
BTA16-600BRG |
STMicroelectronics |
Triacs 16 Amp 600 Volt |
Data Sheet |
|
|
||||||||||||
 |
BTA16-600BW3G |
ON Semiconductor |
Triacs 16A 50mA 600V IGT 3 QUAD INTERNL ISLTD |
Data Sheet |
|
|
||||||||||||
|
BTA16-600CRG |
STMicroelectronics |
Triacs 16 Amp 600 Volt |
Data Sheet |
|
|
||||||||||||
|
BTA16-600BWRG |
STMicroelectronics |
Triacs 16 Amp 600 Volt |
Data Sheet |
|
|
||||||||||||
 |
BTA16-600BW |
|
TRIAC 600V 16A TO-220AB |
Data Sheet |
Negotiable |
|
||||||||||||
|
BTA16-600CW3G |
ON Semiconductor |
Triacs 16A 35mA 600V IGT 3 QUAD INTERNL ISLTD |
Data Sheet |
|
|
||||||||||||
|
BTA16-600SWRG |
STMicroelectronics |
Triacs 16 Amp 600 Volt |
Data Sheet |
|
|
||||||||||||
