SA614AD

SA614AD, monolithic low-power FM IF system, 9 V, 3.3mA, 90dB, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	1.00 / Piece

PartNumber:: SA614AD

Brand:: NXP - NXP | Pack: SOIC | D/C: 09+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-25

From Other Seller

Part Number:SA614AD
US $1.00 - 1.00
Quantity:

piece

Product Summary

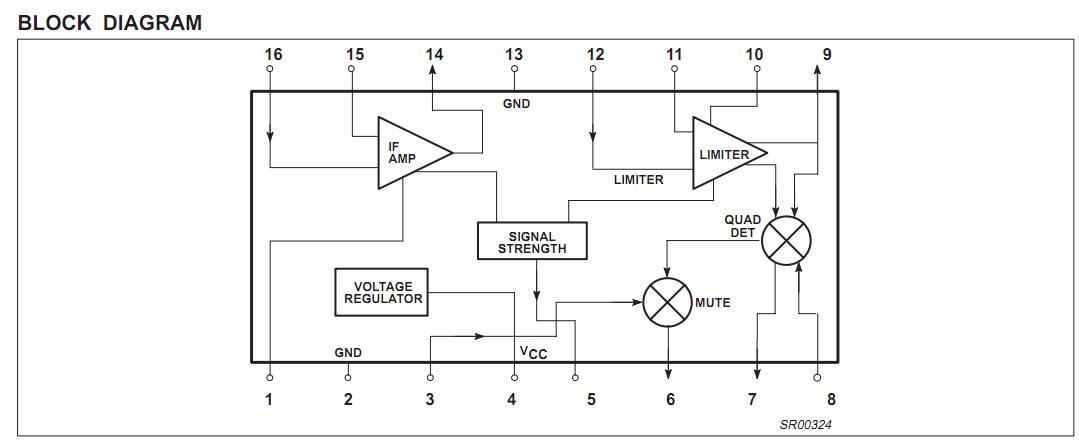

The SA614AD is an improved monolithic low-power FM IF system incorporating two limiting intermediate frequency amplifiers, quadrature detector, muting, logarithmic received signal strength indicator, and voltage regulator. The SA614AD features higher IF bandwidth (25MHz) and temperature compensated RSSI and limiters permitting higher performance application compared with the SA604. The SA614AD is available in a 16-lead dual-in-line plastic and 16-lead SO (surface-mounted miniature) package. The applications of the SA614AD are (1)Cellular radio FM IF; (2)High performance communications receivers; (3)Intermediate frequency amplification and detection up to 25MHz; (4)RF level meter; (5)Spectrum analyzer; (6)Instrumentation; (7)FSK and ASK data receivers.

Parametrics

SA614AD absolute maximum ratings: (1)VCC Single supply voltage 9 V; (2)TSTG Storage temperature range -65 to +150℃; (3)TA Operating ambient temperature range -40 to +85℃; (4)θJA Thermal impedance: 90℃/W.

Features

SA614AD features: (1)Low power consumption: 3.3mA typical; (2)Temperature compensated logarithmic Received Signal Strength Indicator (RSSI) with a dynamic range in excess of 90dB; (3)Two audio outputs - muted and unmuted; (4)Low external component count; suitable for crystal/ceramic filters; (5)Excellent sensitivity: 1.5μV across input pins (0.22μV into 50? matching network) for 12dB SINAD (Signal to Noise and Distortion ratio) at 455kHz; (6)SA614A meets cellular radio specifications.
