AD7683ARM

AD7683ARM, PulSAR analog-to-digital converter (ADC), 6 V, 4mW, MSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	5.00 / Piece

PartNumber:: AD7683ARM

Brand:: Analog Devices - ADI | Pack: MSOP | D/C: 09+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-24

From Other Seller

Part Number:AD7683ARM
US $5.00 - 5.00
Quantity:

piece

Product Summary

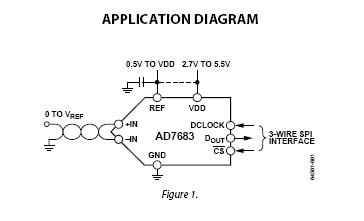

The AD7683ARM is a 16-bit, charge redistribution, successive approximation, PulSAR analog-to-digital converter (ADC) that operates from a single power supply, VDD, between 2.7 V to 5.5 V. It contains a low power, high speed, 16-bit sampling ADC with no missing codes (B grade), an internal conversion clock, and a serial, SPI-compatible interface port. The part also contains a low noise, wide bandwidth, short aperture delay, track-and-hold circuit. On the CS falling edge, the AD7683ARM samples an analog input, +IN, between 0 V to REF with respect to a ground sense, –IN. The reference voltage, REF, is applied externally and can be set up to the supply voltage. Its power scales linearly with throughput. The applications of the AD7683ARM include Battery-powered equipment, Data acquisition, Instrumentation, Medical instruments, Process control.

Parametrics

AD7683ARM absolute maximum ratings: (1)VDD to GND: -0.3 V to +6 V; (2)Digital Inputs to GND: -0.3 V to VDD + 0.3 V; (3)Digital Outputs to GND: -0.3 V to VDD + 0.3 V; (4)Storage Temperature Range: -65℃ to +150℃; (5)Junction Temperature: 150℃; (6)θJA Thermal Impedance: 200℃/W (MSOP-8); (7)θJC Thermal Impedance: 44℃/W (MSOP-8); (8)Lead Temperature Range Vapor Phase (60 sec): 215℃; (9)Infrared (15 sec): 220℃.

Features

AD7683ARM features: (1)16-bit resolution with no missing codes; (2)Throughput: 100 kSPS; (3)INL: ±1 LSB typ, ±3 LSB max; (4)Pseudodifferential analog input range; (5)0 V to VREF with VREF up to VDD; (6)Single-supply operation: 2.7 V to 5.5 V; (7)Serial interface SPIR/QSPI/MICROWIRE/DSP-compatible; (8)Power dissipation : 4mW @ 5V, 1.5mW @ 2.7V,; (9)150μW @ 2.7 V/10 kSPS; (10)Standby current: 1 nA; (11)8-lead package: MSOP package and; (12)3 mm × 3 mm QFN1 (LFCSP) (SOT-23 size); (13)Improved 2nd source to ADS8320 and ADS8325.
