Product Summary
The H1102NL is a 10/100BASE-T single port surface mount magnetic with Various Turns Ratios.
Parametrics
H1102NL absolute maximum ratings: (1)Insertion Loss 100 kHz-100 MHz: -1.1 dB MAX; (2)Return Loss: -20 dB at 30 MHz, -14 dB at 60 MHz and -11.5 dB at 80 MHz; (3)Differential to Common Mode Rejection: -42 dB at 30 MHz, -37 dB at 50 MHz and -33 dB at 100 MHz; (4)Crosstalk: -45 dB at 30 MHz, -40 dB at 50 MHz and -35 dB at 100 MHz; (5)Hipot: 1500 Vrms MIN.
Features
H1102NL features: (1)RoHS peak reflow temperature rating: 245℃; (2)Meets IEEE 802.3 specification; (3)Compact footprint for use in the most space-restrictive applications.

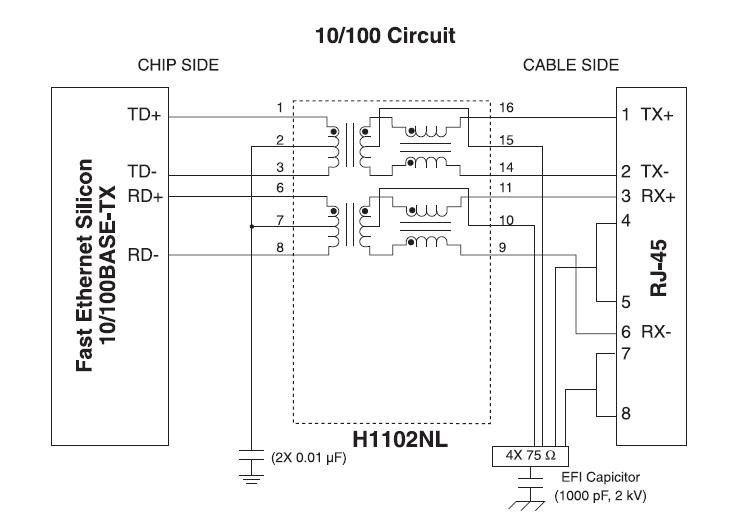

Diagrams
