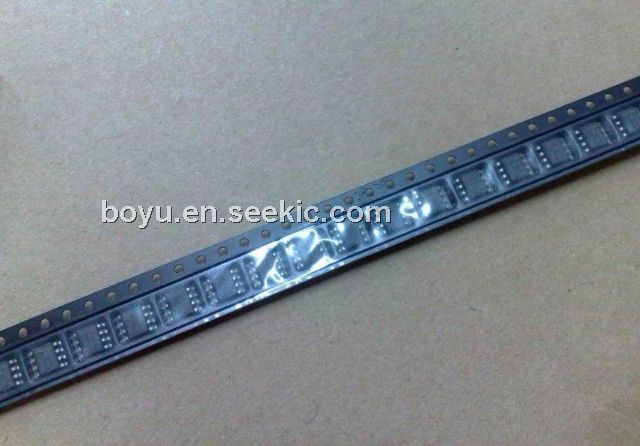

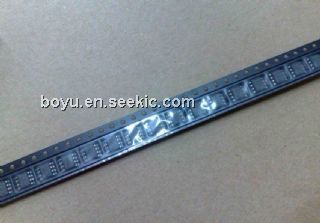

Product Summary

The MC12017D is the dual modulus prescaler which will drive divide by 32. An internal regulator is provided to allow these devices to be used over a wide range of power–supply voltages. The MC12017D may be operated by applying a supply voltage of 5.0 Vdc ±10% at Pin 7, or by applying an unregulated voltage source from 5.5 Vdc to 9.5 Vdc to Pin 8.

Parametrics

MC12017D absolute maximum ratings: (1)Regulated Voltage, Pin 7 Vreg: 8.0 Vdc; (2)Power Supply Voltage, Pin 8 VCC: 10 Vdc; (3)Operating Temperature Range TA: –40 to +85 ℃; (4)Storage Temperature Range Tstg: –65 to +175 ℃.

Features

MC12017D features: (1)225 MHz Toggle Frequency; (2)Low–Power 7.5 mA Maximum at 6.8 V; (3)Control Input and Output Are Compatible With Standard CMOS; (4)Connecting Pins 2 and 3 Allows Driving One TTL Load; (5)Supply Voltage 4.5 V to 9.5 V; (6)Operating Temperature Range TA = –40 to 85℃.

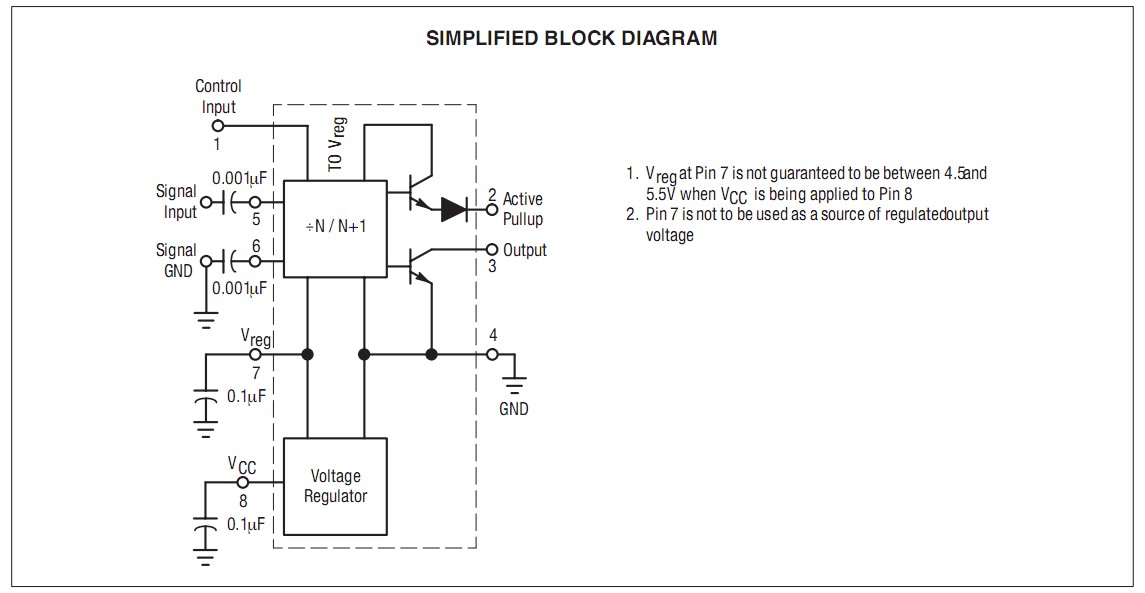

Diagrams

MC12017D pin connection
