Product Summary

The fdw2501nz is a Dual N-Channel 2.5V Specified PowerTrench MOSFET. This N-Channel 2.5V specified MOSFET is a rugged gate version of Fairchild Semiconductor’s advanced PowerTrench process. It has been optimized for power management applications with a wide range of gate drive voltage (2.5V – 12V). The applications of the fdw2501nz include Load switch, Motor drive, DC/DC conversion, and Power management.

Parametrics

fdw2501nz absolute maximum ratings: (1)Drain-Source Voltage: 20 V; (2)Gate-Source Voltage: ±12 V; (3)Drain Current: 6 A; (4)Power Dissipation: 1.0 W; (5)Operating and Storage Junction Temperature Range: -55 to +150 ℃.

Features

fdw2501nz features: (1)Extended VGSS range (±12V) for battery applications; (2)ESD protection diode (note 3); (3)High performance trench technology for extremely low RDS(ON); (4)Low profile TSSOP-8 package.

Diagrams

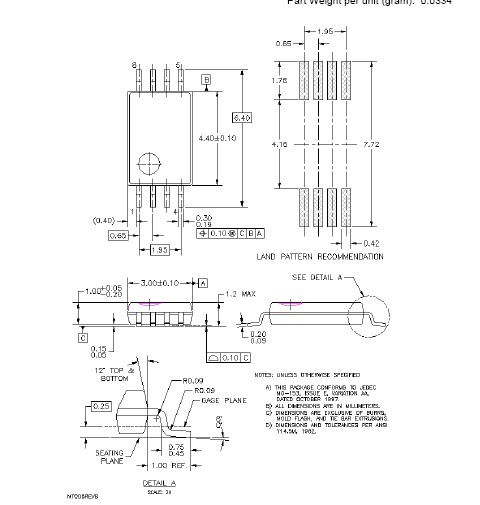

fdw2501nz dimension
