Product Summary

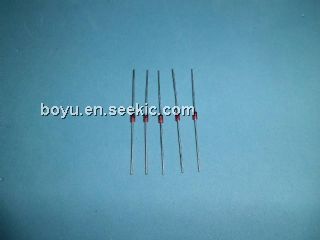

The 1N4745 is a Voltage regulator diode. Low voltage regulator diodes in hermetically sealed SOD66 (DO-41) packages. The series of the 1N4745 consists of 22 types with nominal working voltages from 3.3 to 24 V. The application of the 1N4745 includes Low voltage stabilizers.

Parametrics

1N4745 absolute maximum ratings: (1)IF: 500 mA; (2)Ptot: 1000 mW; (3)Tstg: 65 to +200 ℃; (4)Tj: 65 to +200 ℃; (5)VF: 1.2 V.

Features

1N4745 features: (1)Total power dissipation: max. 1000 mW; (2)Tolerance series: ±5%; (3)Working voltage range: nom. 3.3 to 24 V.

Diagrams

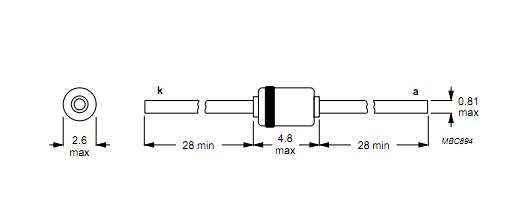

1N4745 block diagram
