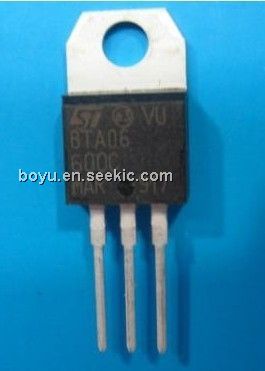

BTA06-600C

BTA06-600C, triac, 6 A, 800 V, 1 W, TO

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	0.40 / Piece

PartNumber:: BTA06-600C

Brand:: STMicroelectronics - ST | D/C: 11+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-03

From Other Seller

Part Number:BTA06-600C
US $0.40 - 0.40
Quantity:

piece

Product Summary

The BTA06-600C is a 6 A triac. Suitable for AC switching operations, the BTA06-600C can be used as an ON/OFF function in applications such as static relay, heating regulation, induction motor starting circuits, or for phase control in light dimmers, motor speed controllers. The snubberless and logic level versions are specially recommended for use on inductive loads, thanks to their high commutation performances. By using an internal ceramic pad, the BTA06-600C provides voltage insulated tab (rated at 2500V RMS) complying with UL standard.

Parametrics

BD436 absolute maximum ratings: (1)RMS on-state current (full sine wave), TO-220AB Tc = 110°C: 6 A; TO-220AB Ins. Tc = 105°C: 6 A; (2)Non repetitive surge peak on-state current (full cycle, Tj initial = 25°C), F = 50 Hz t = 20 ms: 60 A; F = 60 Hz t = 16.7 ms: 63 A; (3)I²t Value for fusing, tp = 10 ms: 21 A²s; (4)Critical rate of rise of on-state current IG = 2 x IGT , tr ≤ 100 ns, F = 120 Hz Tj = 125°C: 50 A/μs; (5)Peak gate current tp = 20 μs, Tj = 125°C: 4 A; (6)Average gate power dissipation, Tj = 125°C: 1 W; (7)Storage junction temperature range: - 40 to + 150 °C; (8)Operating junction temperature range: - 40 to + 125 °C.
