Product Summary

The SI4892 is an N-channel mosfet.

Parametrics

SI4892 absolute maximum ratings: (1)Drain-Source Voltage VDS: 30 V; (2)Gate-Source Voltage VGS: 20V; (3)Continuous Drain Current (TJ = 150°C)TA = 25°C ID: 12.4A, TA = 70°C: 9.9A; (4)Pulsed Drain Current IDM: 50 A; (5)Continuous Source Current (Diode Conduction)a IS: 2.60A; (6)Avalanche Current L = 0 1 mH IAS: 20A; (7)Single-Pulse Avalanche Energy 0.1 EAS: 20 mJ; (8)Maximum Power Dissipationa TA = 25°C PD: 3.1 W; (9)Operating Junction and Storage Temperature Range TJ, Tstg: -55 to 150°C.

Features

SI4892 features: (1)TrenchFET Power MOSFET; (2)High Efficiency PWM Optimized; (3)100% Rg Tested; (4)100% UIS Tested.

Diagrams

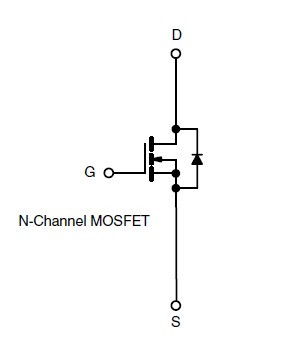

SI4892 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SI4892DY
SI4892DY
Vishay/Siliconix
MOSFET 30V 12.4A 3.1W
Data Sheet
Negotiable
SI4892DY-E3
SI4892DY-E3
Vishay/Siliconix
MOSFET 30V 12.4A 3.1W
Data Sheet
Negotiable
SI4892DY-T1-E3
SI4892DY-T1-E3
Vishay/Siliconix
MOSFET 30 Volt 12.4A 3.1W
Data Sheet
0-1: $1.86
1-10: $1.28
10-50: $1.19
50-100: $1.10
SI4892DY-T1-GE3
SI4892DY-T1-GE3
Vishay/Siliconix
MOSFET 30V 12.4A 3.1W 12mohm @ 10V
Data Sheet
0-1340: $0.83
1340-2500: $0.76
2500-5000: $0.71
5000-7500: $0.66
SI4892DY-T1
SI4892DY-T1
Vishay/Siliconix
MOSFET 30V 12.4A 1.6W
Data Sheet
Negotiable
