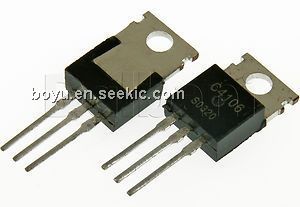

Product Summary

The 2SC4106 is a kind of 400V/7A Switching Regulator.

Parametrics

2SC4106 absolute maximum ratings: (1)Collector-to-Base Voltage, VCBO: 500 V; (2)Collector-to-Emitter Voltage, VCEO: 400 V; (3)Emitter-to-Base Voltage, VEBO: 7 V; (4)Collector Current, IC: 7 A; (5)Collector Current (Pulse), ICP: 14 A; (6)Base Current, IB: 3 A; (7)Collector Dissipation, PC: 1.75 W; (8)Junction Temperature, Tj: 150℃; (9)Storage Temperature, Tstg: -55 to +150℃.

Features

2SC4106 features: (1)High breakdown voltage and high reliability; (2)Fast switching speed; (3)Wide ASO; (4)Adoption of MBIT process.

Diagrams

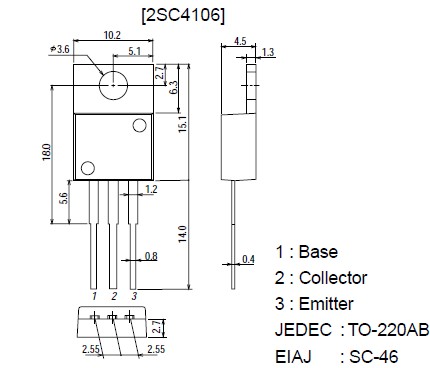

2SC4106 circuit diagram
