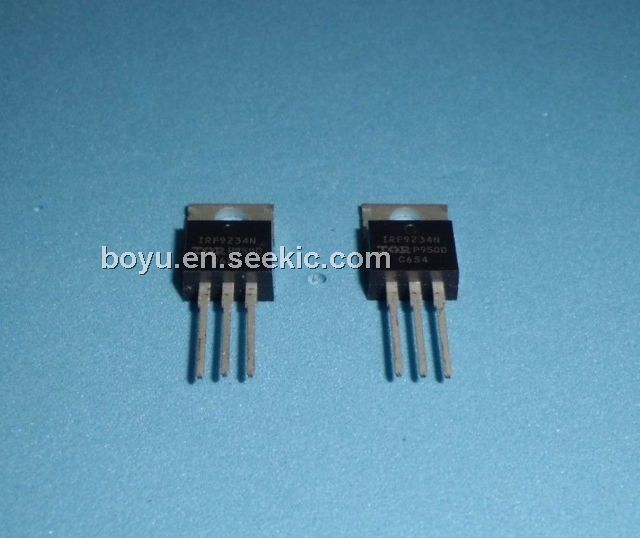

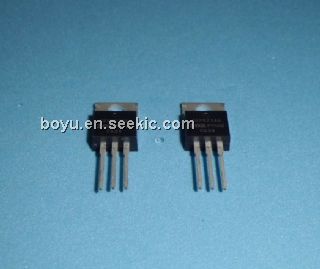

IRF9Z34N

IRF9Z34N, HEXFET POWER MOSFET, TO-220AB, -55V, -19A, International Rectifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	0.40 / Piece

PartNumber:: IRF9Z34N

Brand:: International Rectifier - IR | D/C: 11+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-29

From Other Seller

Part Number:IRF9Z34N
US $0.40 - 0.40
IRF9Z34NSTRLPBF

US $0.29 - 0.29 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRF9Z34N is a Fifth Generation HEXFET from International Rectifier. The IRF9Z34N utilizes advanced processing techniques to achieve the lowest possible on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that the IRF9Z34N is well known for, provides the designer with an extremely efficient device for use in a wide variety of applications. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.

Parametrics

IRF9Z34N absolute maximum rarings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: -19 A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: -14 A; (3)IDM Pulsed Drain Current: -68 A; (4)PD @TC = 25℃ Power Dissipation: 68 W; (5)Linear Derating Factor: 0.45 W/℃; (6)VGS Gate-to-Source Voltage: ±20 V; (7)EAS Single Pulse Avalanche Energy: 180 mJ; (8)IAR Avalanche Current: -10 A; (9)EAR Repetitive Avalanche Energy: 6.8 mJ; (10)dv/dt Peak Diode Recovery dv/dt: -5.0 V/ns; (11)TJ TSTG Operating Junction and Storage Temperature Range: -55 to + 175℃; (12)Soldering Temperature, for 10 seconds: 300 (1.6mm from case )℃; (13)Mounting torque, 6-32 or M3 screw: 10 lbf·in(1.1 N·m).

Features

IRF9Z34N features: (1)Advanced Process Technology; (2)Surface Mount; (3)175℃ Operating Temperature; (4)Fast Switching; (5)P-Channel; (6)Fully Avalanche Rated; (7)Lead-free.
