Product Summary

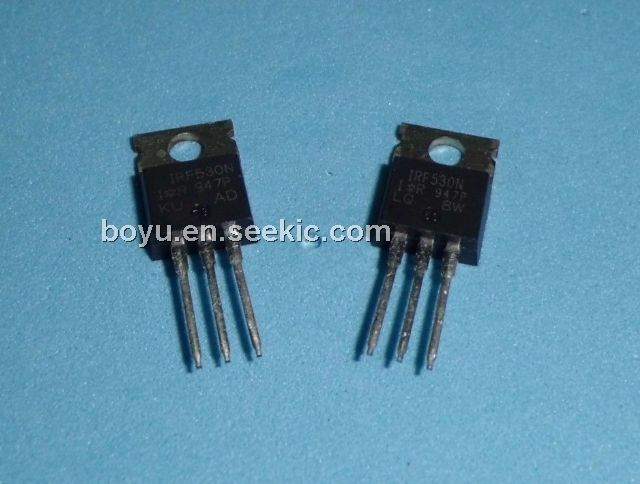

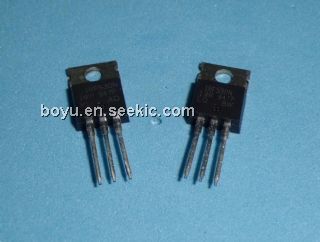

The IRF530N is a HEXFET power MOSFET. The IRF530N utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that the IRF530N is well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

Parametrics

IRF530N absolute maximum ratings: (1)ID @ TC = 25℃ continuous drain current, VGS @ 10V: 17 A; (2)ID @ TC = 100℃ continuous drain current, VGS @ 10V: 12 A; (3)IDM pulsed drain current: 60 A; (4)PD @TC = 25℃ power dissipation: 70 W; (5)Linear derating factor: 0.47 W/℃; (6)VGS gate-to-source voltage: ± 20 V; (7)IAR avalanche current: 9.0 A; (8)Ear repetitive avalanche energy: 7.0 mJ; (9)dv/dt peak diode recovery dv/dt: 7.4 V/ns; (10)TJ TSTG operating junction and storage temperature range: -55 to + 175 ℃; (11)Soldering temperature, for 10 seconds 300 (1.6mm from case )℃.

Features

IRF530N features: (1)Advanced process technology; (2)Ultra low on-resistance; (3)Dynamic dv/dt rating; (4)175℃ operating temperature; (5)Fast switching; (6)Fully avalanche rated; (7)Lead-free.

Diagrams

IRF530N pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRF530N
IRF530N

International Rectifier

MOSFET N-CH 100V 17A TO-220AB

Data Sheet

1-400: $0.65
IRF530N,127
IRF530N,127


MOSFET N-CH 100V 17A TO-220AB

Data Sheet

Negotiable
IRF530NPBF
IRF530NPBF

International Rectifier

MOSFET MOSFT 100V 17A 90mOhm 24.7nC

Data Sheet

0-1: $1.33
1-25: $0.81
25-100: $0.56
100-250: $0.53
IRF530N_R4942
IRF530N_R4942

Fairchild Semiconductor

MOSFET TO-220AB N-Ch Power

Data Sheet

Negotiable
IRF530NL
IRF530NL


MOSFET N-CH 100V 17A TO-262

Data Sheet

0-350: $0.68
IRF530NLPbF
IRF530NLPbF

International Rectifier

MOSFET N-CH 100V 17A TO-262

Data Sheet

1-10: $0.68
10-100: $0.49
100-250: $0.46
250-500: $0.44
500-1000: $0.41
1000-2500: $0.39
2500-10000: $0.36
IRF530NSTRLPBF
IRF530NSTRLPBF

International Rectifier

MOSFET MOSFT 100V 17A 90mOhm 24.7nC

Data Sheet

0-1: $1.41
1-25: $0.91
25-100: $0.66
100-250: $0.62
IRF530NSTRRPBF
IRF530NSTRRPBF

International Rectifier

MOSFET

Data Sheet

0-800: $0.50
800-960: $0.50
960-1000: $0.48
1000-2000: $0.45
