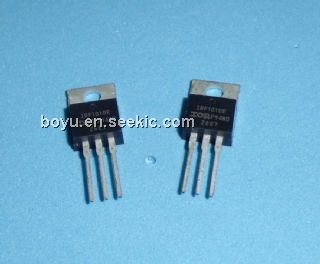

IRF1010E

IRF1010E, 60V, 84A, HEXFET Power MOSFET, 59 A, International

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	0.50 / Piece

PartNumber:: IRF1010E

Brand:: International Rectifier - IR | D/C: 11+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-29

From Other Seller

Part Number:IRF1010E
US $0.50 - 0.50
IRF1010EPBF

US $0.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRF1010EPBF is an Advanced HEXFET Power MOSFET from International Rectifier. The IRF1010EPBF utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that the IRF1010EPBF is well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.

Parametrics

IRF1010EPBF absolute maximum rarings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 84 A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 59 A; (3)IDM Pulsed Drain Current: 330 A; (4)PD @TC = 25℃ Power Dissipation: 200 W; (5)Linear Derating Factor: 1.4 W/℃; (6)VGS Gate-to-Source Voltage: ±20 V; (7)IAR Avalanche Current: 50 A; (8)EAR Repetitive Avalanche Energy: 17 mJ; (9)dv/dt Peak Diode Recovery dv/dt: 4.0 V/ns; (10)TJ TSTG Operating Junction and Storage Temperature Range: -55 to + 175℃; (11)Soldering Temperature, for 10 seconds: 300 (1.6mm from case )℃; (12)Mounting torque, 6-32 or M3 screw: 10 lbf·in(1.1 N·m).

Features

IRF1010EPBF features: (1)Advanced Process Technology; (2)Ultra Low On-Resistance; (3)Dynamic dv/dt Rating; (4)175℃ Operating Temperature; (5)Fast Switching; (6)Fully Avalanche Rated; (7)Lead-Free.
