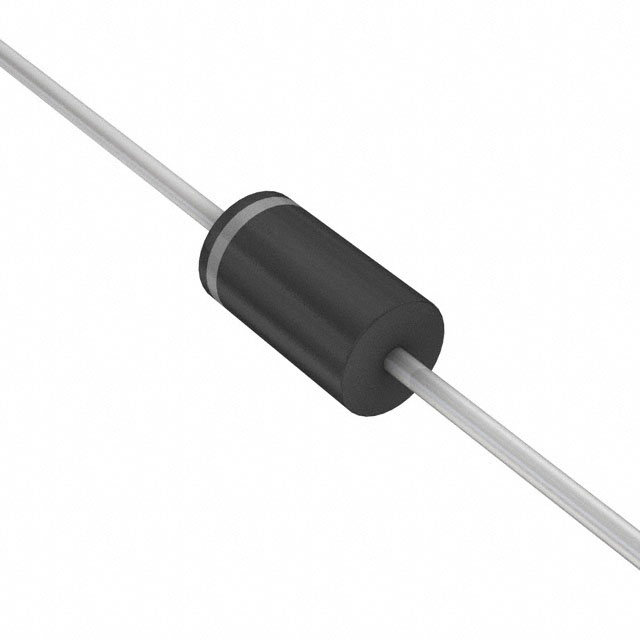

Product Summary
The 1N5401 is a standard recovery rectifier.
Parametrics
1N5401 absolute maximum ratings: (1)Peak repetitive reverse voltage working peak reverse voltage dc blocking voltage, VRRM VRWM VR: 100 Volts; (2)Non–repetitive peak reverse voltage, VRSM: 200 Volts; (3)Average rectified forward current (single phase resistive load, 1/2, leads, TL = 105°C), IO: 3.0 Amp; (4)Non–repetitive peak surge current (surge applied at rated load conditions), IFSM: 200 (one cycle) Amp; (5)Operating and storage junction, TJ: - 65 to +170 °C; (6)Temperature range, Tstg: -65 to +175 °C.
Features
1N5401 features: (1)High current to small size; (2)High surge current capability; (3)Low forward voltage drop; (4)Void–free economical plastic package; (5)Available in volume quantities.

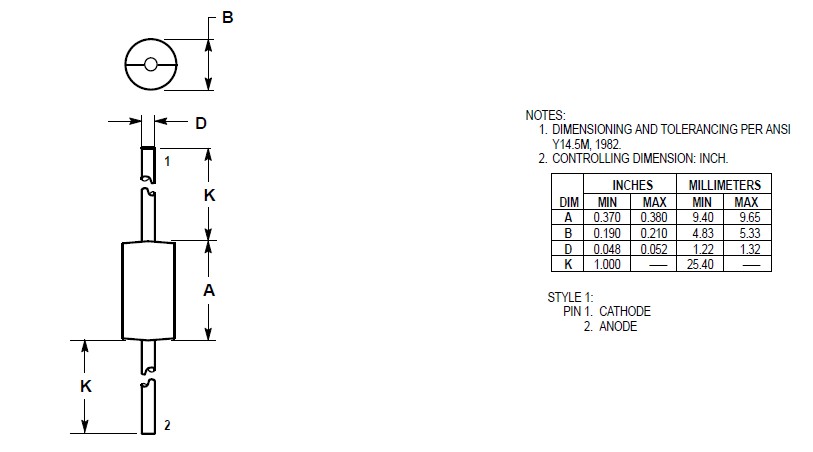

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() 1N5401/54 |
![]() |
![]() DIODE GPP 3A 100V DO201AD |
![]() Data Sheet |
![]() Negotiable |
|
|||||||||||||||||||
![]() |
![]() 1N5401_Q |
![]() Fairchild Semiconductor |
![]() Rectifiers 3.0a Rectifier General Purpose |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||||||
![]() |
![]() 1N5401-B |
![]() Rectron |
![]() Rectifiers Vr/100V Io/3A BULK |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||
![]() |
![]() 1N5401-E3/54 |
![]() Vishay Semiconductors |
![]() Rectifiers 3.0 Amp 100 Volt |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||
![]() |
![]() 1N5401-G |
![]() |
![]() DIODE RECTIFIER 3A 100V DO-201AD |
![]() Data Sheet |
![]()
|
|
||||||||||||||||||
![]() |
![]() 1N5401GP |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||||||
![]() |
![]() 1N5401K |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||||||
![]() |
![]() 1N5401RLG |
![]() ON Semiconductor |
![]() Rectifiers 100V 3A Standard |
![]() Data Sheet |
![]()
|
|
