Product Summary

The 2SA1295 is a silicon PNP epitaxial planar transistor. The application of the 2SA1295 include audio and general.

Parametrics

2SA1295 absolute maximum ratings: (1)VCBO: -230 V; (2)VCEO: -230 V; (3)VEBO: -5 V; (4)IC: -17 A; (5)IB: -5 A; (6)PC: 200(Tc=25°C) W; (7)Tj: 150 °C; (8)Tstg: -55 to +150 °C.

Diagrams

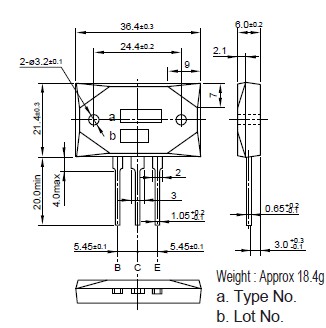

2SA1295 pin connection
