Product Summary

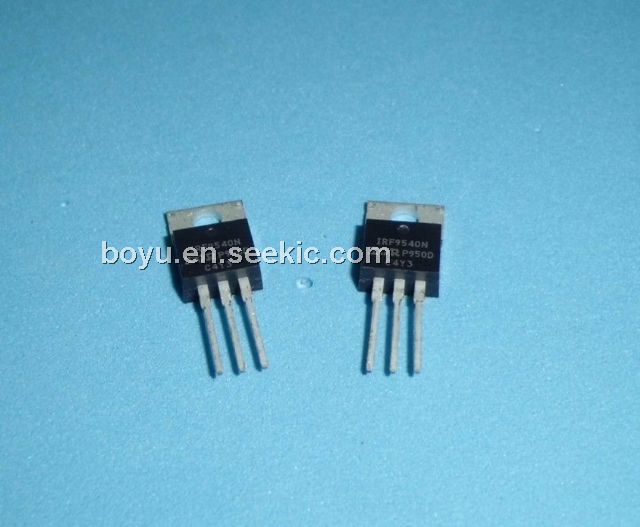

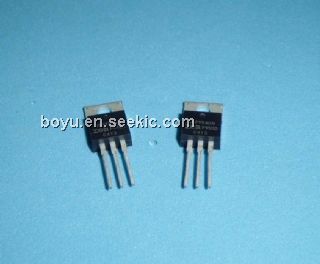

The IRF9540N is a Power MOSFET. The IRF9540N utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFET is well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-220 package of the IRF9540N is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.

Parametrics

IRF9540N absolute maximum ratings: (1)Continuous drain current: -23 A( 25℃), -16 A(100℃); (2)Pulsed drain current: -76 A; (3)Power dissipation:140 W; (4)Linear derating factor: 0.91 W/℃; (5)Gate-to-source voltage: ±20 V; (6)Single pulse avalanche energy: 430 mJ; (7)Avalanche current:-11 A; (8)Repetitive avalanche energy: 14 mJ; (9)Peak diode recovery dv/dt: -5.0 V/ns; (10)Operating junction and storage temperature range: -55 to + 175℃; (11)Soldering temperature for 10 seconds: 300℃(1.6mm from case).

Features

IRF9540N Features: (1)Advanced process technology; (2)Dynamic dv/dt rating; (3)175℃ operating temperature; (4)Fast switching; (5)P-channel; (6)Fully avalanche rated.

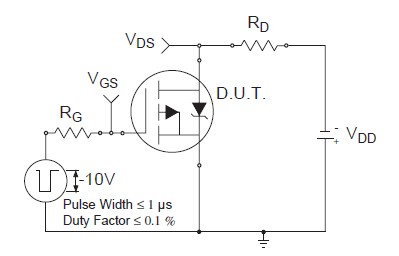

Diagrams

IRF9540N pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRF9540N
IRF9540N

International Rectifier

MOSFET P-CH 100V 23A TO-220AB

Data Sheet

1-250: $0.92
IRF9540NL
IRF9540NL


MOSFET P-CH 100V 23A TO-262

Data Sheet

Negotiable
IRF9540NPBF
IRF9540NPBF

International Rectifier

MOSFET MOSFT PCh -100V -23A 117mOhm 64.7nC

Data Sheet

0-1: $1.53
1-25: $0.98
25-100: $0.71
100-250: $0.67
IRF9540NLPBF
IRF9540NLPBF

International Rectifier

MOSFET MOSFT PCh -100V -23A 117mOhm 64.7nC

Data Sheet

0-1: $1.45
1-25: $0.94
25-100: $0.68
100-250: $0.64
IRF9540NSPBF
IRF9540NSPBF

International Rectifier

MOSFET

Data Sheet

0-430: $0.71
430-500: $0.62
500-1000: $0.54
1000-2000: $0.52
IRF9540NS
IRF9540NS

Other


Data Sheet

Negotiable
IRF9540NSTRLPBF
IRF9540NSTRLPBF

International Rectifier

MOSFET MOSFT PCh -100V -23A 117mOhm 64.7nC

Data Sheet

0-1: $1.96
1-25: $1.27
25-100: $0.91
100-250: $0.85
IRF9540NSTRRPBF
IRF9540NSTRRPBF

International Rectifier

MOSFET

Data Sheet

0-440: $0.74
440-500: $0.64
500-800: $0.64
800-1000: $0.55
