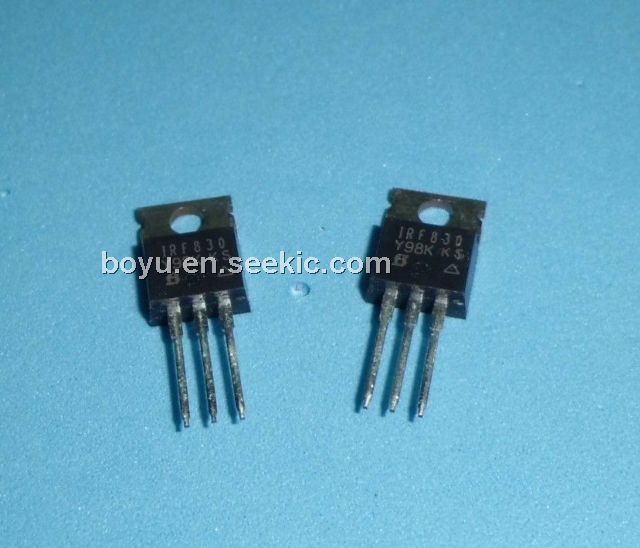

Product Summary

The IRF830 is a power MOSFET. Applications are (1)Switch mode power supply ( SMPS ); (2)Uninterruptable power supply; (3)High speed power switching.

Parametrics

IRF830 absolute maximum ratings: (1)ID @ TC = 25℃ continuous drain current, VGS @ 10V: 5.0 A; (2)ID @ TC = 100℃ continuous drain current, VGS @ 10V: 3.2 A; (3)IDM pulsed drain current: 20 A; (4)PD @TC = 25℃ power dissipation: 74 W; (5)Linear derating factor: 0.59 W/℃; (6)VGS gate-to-source voltage: ± 30 V; (7)dv/dt peak diode recovery dv/dt: 5.3 V/ns; (8)TJ operating junction: -55 to + 150℃; (9)TSTG storage temperature range: -55 to + 150℃; (10)Soldering temperature, for 10 seconds(1.6mm from case): 300℃; (11)Mounting torqe, 6-32 or M3 screw: 10 lbf.in (1.1N.m).

Features

IRF830 features: (1)Low gate charge qg results in simple drive requirement; (2)Improved gate, avalanche and dynamic dv/dt ruggedness; (3)Fully characterized capacitance and avalanche voltage and current; (4)Effective coss specified.

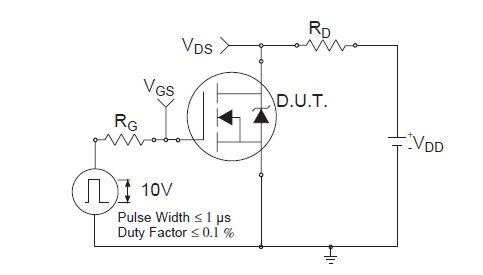

Diagrams

IRF830 pin connection
