Product Summary

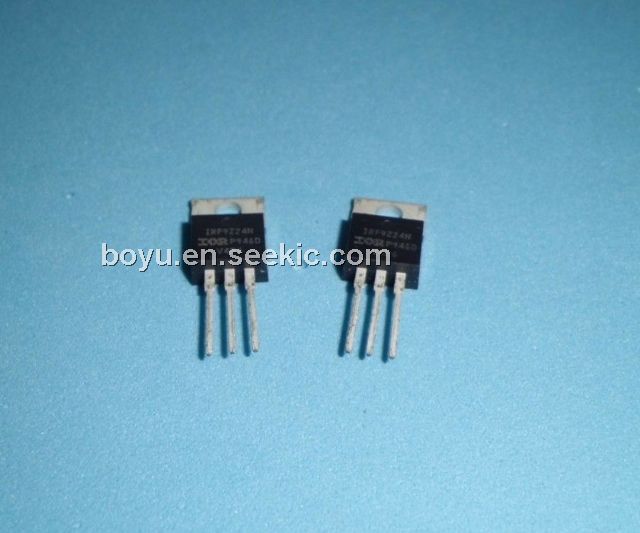

The IRF9Z24N is a Fifth Generation HEXFET from International Rectifier. The IRF9Z24N utilizes advanced processing techniques to achieve the lowest possible on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that the IRF9Z24N is well known for, provides the designer with an extremely efficient device for use in a wide variety of applications. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.

Parametrics

IRF9Z24N absolute maximum rarings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: -12 A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: -8.5 A; (3)IDM Pulsed Drain Current: -48 A; (4)PD @TC = 25℃ Power Dissipation: 45 W; (5)Linear Derating Factor: 0.30 W/℃; (6)VGS Gate-to-Source Voltage: ±20 V; (7)EAS Single Pulse Avalanche Energy: 96 mJ; (8)IAR Avalanche Current: -7.2 A; (9)EAR Repetitive Avalanche Energy: 4.5 mJ; (10)dv/dt Peak Diode Recovery dv/dt: -5.0 V/ns; (11)TJ TSTG Operating Junction and Storage Temperature Range: -55 to + 175℃; (12)Soldering Temperature, for 10 seconds: 300 (1.6mm from case )℃; (13)Mounting torque, 6-32 or M3 screw: 10 lbf·in(1.1 N·m).

Features

IRF9Z24N features: (1)Advanced Process Technology; (2)Surface Mount; (3)175℃ Operating Temperature; (4)Fast Switching; (5)P-Channel; (6)Fully Avalanche Rated; (7)Lead-free.

Diagrams

IRF9Z24N circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRF9Z24N
IRF9Z24N

International Rectifier

MOSFET P-CH 55V 12A TO-220AB

Data Sheet

1-400: $0.62
IRF9Z24NL
IRF9Z24NL


MOSFET P-CH 55V 12A TO-262

Data Sheet

Negotiable
IRF9Z24NPBF
IRF9Z24NPBF

International Rectifier

MOSFET MOSFT PCh -55V -12A 175mOhm 12.7nC

Data Sheet

0-1: $1.15
1-25: $0.71
25-100: $0.49
100-250: $0.46
IRF9Z24NSPBF
IRF9Z24NSPBF

International Rectifier

MOSFET

Data Sheet

0-1: $1.13
1-25: $0.70
25-100: $0.48
100-250: $0.45
IRF9Z24NS
IRF9Z24NS


MOSFET P-CH 55V 12A D2PAK

Data Sheet

Negotiable
IRF9Z24NLPBF
IRF9Z24NLPBF


MOSFET P-CH 55V 12A TO-262

Data Sheet

0-1: $0.94
1-10: $0.58
10-100: $0.43
100-250: $0.40
250-500: $0.38
500-1000: $0.35
1000-2500: $0.34
2500-10000: $0.31
IRF9Z24NSTRLPBF
IRF9Z24NSTRLPBF

International Rectifier

MOSFET MOSFT PCh -55V -12A 175mOhm 12.7nC

Data Sheet

0-1: $1.25
1-25: $0.77
25-100: $0.53
100-250: $0.50
IRF9Z24NSTRL
IRF9Z24NSTRL


MOSFET P-CH 55V 12A D2PAK

Data Sheet

Negotiable
