Product Summary

The 2SC4093-T1B is an NPN silicon epitaxial transistor designed for low noise amplifier at VHF, UHF and CATV band. The 2SC4093-T1B has large dynamic range and good current characteritics, and is contatined in a 4 pins mini-mold package which enables high-isolation gain.

Parametrics

2SC4093-T1B absolute maximum ratings: (1)Collector to base voltage, VCBO: 20 V; (2)Collector to emitter voltage, VCEO: 12 V; (3)Emitter to base voltage, VEBO: 3.0 V; (4)Collector current, IC: 100 mA; (5)Total power dissipation, PT: 200 mW; (6)Junction temperature, Tj: 150 ℃; (7)Storage temperature, Tstg: -65 to +150 ℃.

Features

2SC4093-T1B features: (1)Low Noise NF = 1.1 dB TYP. @ VCE = 10 V, IC = 7 mA, f = 1.0 GHz; (2)High Power Gains |S21e|2 = 13 dB TYP. @ VCE = 10 V, IC = 20 mA, f = 1.0 GHz.

Diagrams

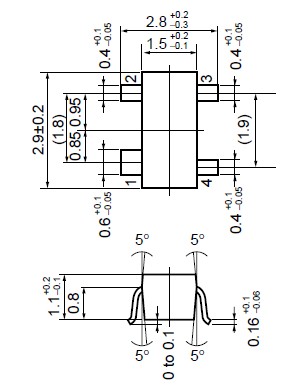

2SC4093-T1B pin connection
