Product Summary

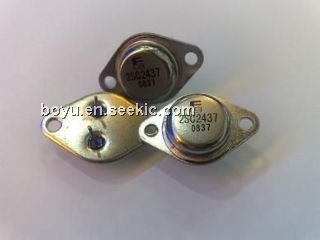

The 2SC2437 is a silicon NPN power transistor with high voltage, high speed switching and high reliability. It is used in switching regulators, DC-DC convertor, Solid state relay, general purpose power amplifiers.
Parametrics
2SC2437 absolute maximum ratings: (1)VCBO, Collector-base voltage: 450 V at Open emitter; (2)VCEO, Collector-emitter voltage: 400 V at Open base; (3)VEBO, Emitter-base voltage: 7 V at Open collector; (4)IC, Collector current: 7 A; (5)IB, Base current: 2 A; (6)PC, Collector power dissipation: 100 W at TC=25℃; (7)Tj, Junction temperature: 150 ℃; (8)Tstg, Storage temperature: -55~150 ℃.
Features
2SC2437 features: (1)With TO-3 package; (2)High voltage, high speed switching; (3)High reliability.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC2437 |
Other |
|
Data Sheet |
Negotiable |
|
||||
