Product Summary

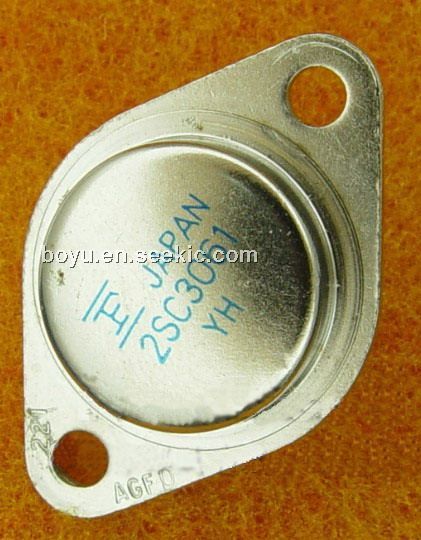

The 2SC3061 is a silicon NPN power transistor. The applications of the 2SC3061 include (1)Switching regulators; (2)Motor controls; (3)Ultrasonic oscillators; (4)Class C and D amplifiers; (5)Deflection circuits.
Parametrics
2SC3061 absolute maximum ratings: (1)VCBO, collector-base voltage, open emitter: 1200 V; (2)VCEO, collector-emitter voltage, open base: 850 V; (3)VEBO, emitter-base voltage, open collector: 7 V; (4)IC, collector current: 10 A; (5)ICP, collector current-pulse, PW≤25μs,Duty cycle≤50%: 20 A; (6)IB, base current: 5 A; (7)PC, collector power dissipation, TC=25℃: 200 W; (8)Tj, junction temperature: 175 ℃; (9)Tstg, storage temperature: -65~175 ℃.
Features
2SC3061 features: (1)With TO-3 package; (2)Ultra-fast switching; (3)Wide area of safe operation; (4)High breakdown voltage.
