Product Summary

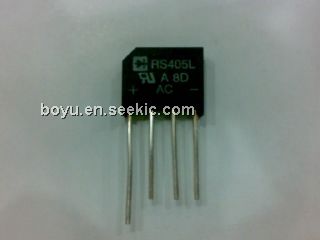

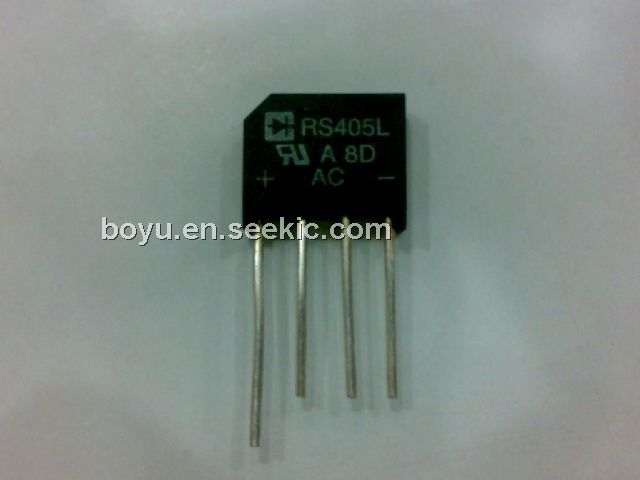

The RS405L is a single-phase glass passivated silicon bridge rectifier.

Parametrics

RS405L absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage, VRRM: 600 V; (2)Maximum RMS Bridge Input Voltage, VRMS: 420 V; (3)Maximum DC Blocking Voltage, VDC: 600 V; (4)Maximum Average Forward Output Current TA = 50℃, IO: 4.0 A; (5)Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC method), IFSM: 150 A; (6)Typical Thermal Resistance from junction to case, R¦ÈJC: 10 ℃/W; (7)Typical Thermal Resistance from junction to ambient, R¦ÈJA: 28 ℃/W; (8)Operating Temperature Range: -55 to +150℃; (9)Storage Temperature Range: -55 to +150℃.

Features

RS405L features: (1)Ideal for printed circuit board; (2)Surge overload rating: 150 amperes peak; (3)Mounting position: Any; (4)Weight: 4.8 grams; (5)Molded structure.

Diagrams

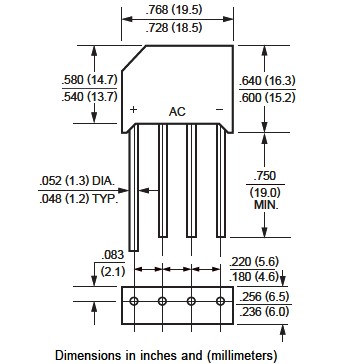

RS405L circuit diagram
