Product Summary

The 2SC3264 is a Silicon NPN Epitaxial Planar Transistor for audio and general purpose.

Parametrics

2SC3264 absolute maximum ratings: (1)VCBO: 230v; (2)VCEO: 230v; (3)VEBO: 5v; (4)IC: 17A; (5)IB: 5A; (6)PC: 200(Tc=25℃)w; (7)Tj: 150℃; (8)Tstg: –55 to +150℃.

Features

2SC3264 electrical characteristics: (1)ICBO at VCB=230V: 100max uA; (2)IEBO at VEB=5V: 100max uA; (3)V(BR)CEO at IC=25mA: 230min V; (4)hFE at VCE=4V, IC=5A: 50min; (5)VCE(sat) at IC=5A, IB=0.5 A: 2.0max v; (6)fT at VCE=12V, IE=–2A: 60typ MHZ; (7)COB at VCB=10V, f=1MHz: 250typ pF.

Diagrams

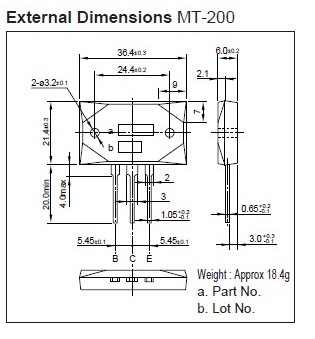

2SC3264 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

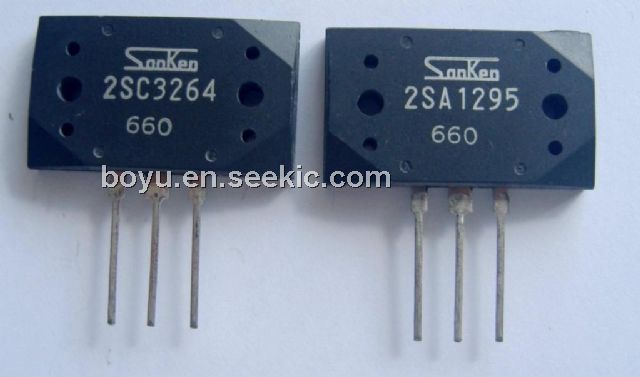

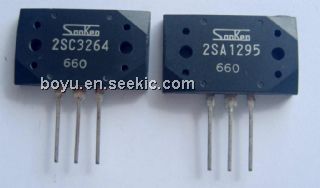

2SC3264
2SC3264

Other


Data Sheet

Negotiable
