Product Summary
The FDG312P is a P-channel 2.5V specified PowerTrench MOSFET. The FDG312P is produced using Fairchild Semiconductor advanced PowerTrench process that has been especially tailored to minimize the on-state resistance and yet maintain low gate charge for superior switching performance. The FDG312P is be well suit for portable electronics applications. Applications are (1)Load switch; (2)Battery protection; (3)Power management.
Parametrics
FDG312P absolute maximum ratings: (1)Drain-source voltage: -20 V; (2)Gate-source voltage: ± 8 V; (3)Drain current, continuous: -1.2 A; Pulsed: -6 A; (4)Power dissipation for single operation (Note 1a): 0.75 W; (Note 1b): 0.55 W; (Note 1c): 0.48; (5)Operating and storage junction temperature range: -55 to +150 °C.
Features
FDG312P features: (1)-1.2 A, -20 V. RDS(on)= 0.18 W @ VGS = -4.5 V; RDS(on)= 0.25 W @ VGS = -2.5 V; (2)Low gate charge (3.3 nC typical); (3)High performance trench technology for extremely low RDS(ON); (4)Compact industry standard SC70-6 surface mount package.

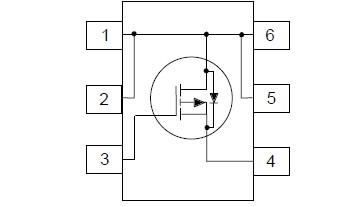

Diagrams
