Product Summary

The BTA26-600 is a 25A triac. Available either in through-hole or surface-mount packages, the BTA26-600 is suitable for general purpose AC switching. It can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits or for phase control operation in light dimmers, motor speed controllers.

Parametrics

BTA26-600 absolute maximum ratings: (1)IT, RMS on-stage current: 25A; (2)ITSM, non repetitive surge peak on-stage current when F=50Hz and t=20ms: 250A; when F=60Hz and t=16.7ms: 260A; (3)I2t value for fusing when tp=10ms: 340A2s; (4)dl/dt, critical rate of rise of on-stage current IG=2xIGT,tr≤100ns when F=120Hz, Tj=125℃: 50A/μs; (5)IGM, peak gate current, tp=20μs, TJ=125℃: 4A; (6) VDSM/VRSM Non repetitive surge peak off-state voltage when tp=10ms, TJ=25℃: VDSM/VRSM + 100V;(7) Average gate power dissipation when Tj = 125℃: 1W; (8) Storage junction temperature range: -40℃ to 150℃; (9) Operating junction temperature range: -40℃ to 150℃.

Features

BTA26-600 features: (1) IT (RMS): 25A; (2) VDRM/VRRM: 600V and 800V; (3) IGT (Q1): 35mA to 50mA.

Diagrams

BTA26-600 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

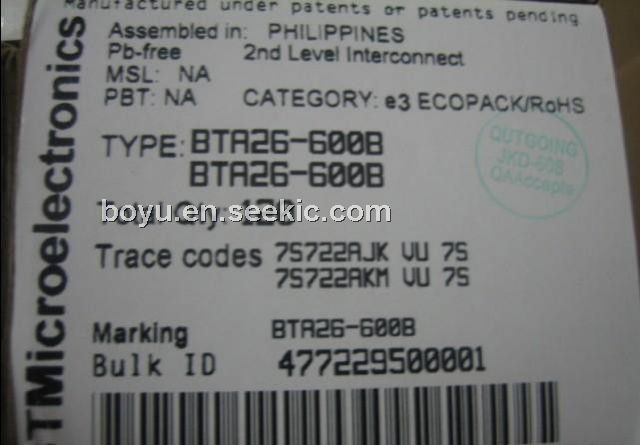

BTA26-600B
BTA26-600B

Other


Data Sheet

Negotiable
BTA26-600BRG
BTA26-600BRG

STMicroelectronics

Triacs 25 Amp 600 Volt

Data Sheet

0-1: $3.97
1-10: $3.19
10-100: $2.90
100-250: $2.62
BTA26-600BWRG
BTA26-600BWRG

STMicroelectronics

Triacs 25 Amp 600 Volt

Data Sheet

0-1: $2.65
1-10: $2.12
10-100: $1.93
100-250: $1.75
BTA26-600BW
BTA26-600BW


TRIAC 600V 25A TOP 3

Data Sheet

0-1: $5.10
1-10: $4.59
10-100: $3.77
100-250: $3.47
250-500: $3.16
500-1000: $2.75
1000-2500: $2.65
2500-5000: $2.55
5000-10000: $2.51
