Product Summary

The 2SC3320 is a triple diffused planer type high voltage high speed switching.

Parametrics

2SC3320 absolute maximum ratings: (1)VCBO: 500 V; (2)VCEO: 400 V; (3)VCEO(SUS): 400 V; (4)VEBO: 7 V; (5)IC: 15 A; (6)IB: 5 A; (7)Pc: 80 W; (8)Tj: +150 ℃; (9)Tstg: -65 to +150 ℃.

Features

2SC3320 features: (1)high voltage, high speed switching; (2)high reliability.

Diagrams

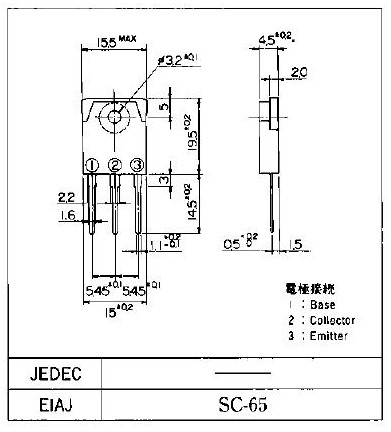

2SC3320 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

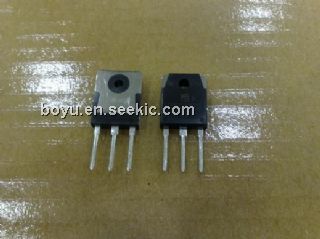

2SC3320
