Product Summary

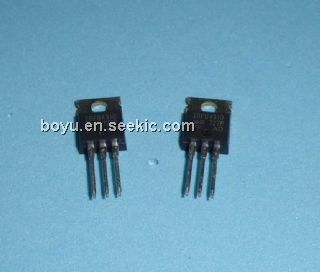

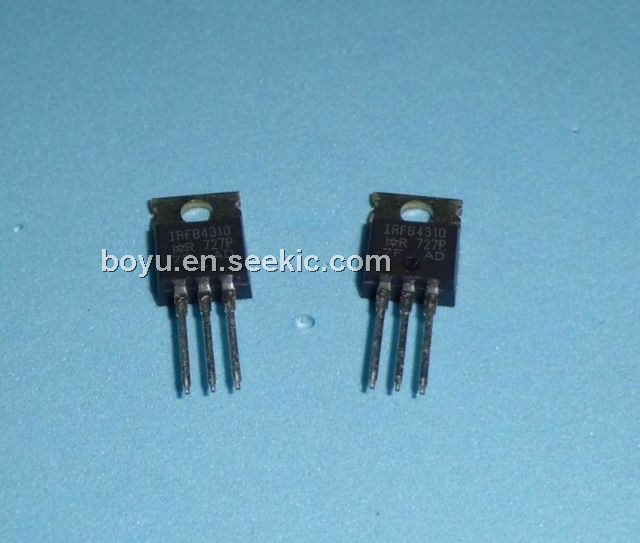

The IRFB4310 is a HEXFET power MOSFET. The applications of the IRFB4310 include high efficiency synchronous rectification in smps, uninterruptible power supply, high speed power switching, hard switched and high frequency circuits.

Parametrics

IRFB4310 absolute maximum ratings: (1)Continuous drain current, VGS @ 10V A: 140 A; (2)ID @ TC = 100℃ continuous drain current, VGS @ 10V: 97 A; (3)IDM pulsed drain current: 550 A; (4)PD @TC = 25℃ maximum power dissipation: 330 W; (5)Linear derating factor: 2.2 W/℃; (6)Gate-to-source voltage: ±20 V; (7)Peak diode recovery: 14 V/ns; (8)Operating junction and storage temperature range: -55 to +175 ℃.

Features

IRFB4310 features: (1)Worldwide best RDS(on) in TO-220; (2)Improved gate, avalanche and dynamic dv/dt ruggedness; (3)Fully characterized capacitance and avalanche SOA; (4)Enhanced body diode dV/dt and dI/dt capabilit.

Diagrams

IRFB4310 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRFB4310
IRFB4310
International Rectifier
MOSFET N-CH 100V 140A TO-220AB
Data Sheet
1-150: $2.28
IRFB4310GPBF
IRFB4310GPBF
International Rectifier
MOSFET MOSFT 100V 140A 7mOhm 170nC
Data Sheet
0-1: $3.52
1-25: $2.41
25-100: $1.79
100-250: $1.71
IRFB4310ZPBF
IRFB4310ZPBF
International Rectifier
MOSFET MOSFT 100V 127A 6mOhm 120nC Qg
Data Sheet
0-1: $2.28
1-25: $1.55
25-100: $1.16
100-250: $1.11
IRFB4310ZGPBF
IRFB4310ZGPBF
International Rectifier
MOSFET MOSFT 100V 127A 6mOhm 120nC
Data Sheet
0-1: $2.39
1-25: $1.63
25-100: $1.22
100-250: $1.16
IRFB4310PBF
IRFB4310PBF
International Rectifier
MOSFET MOSFT 100V 140A 7mOhm 170nC
Data Sheet
0-1: $3.62
1-25: $2.47
25-100: $1.84
100-250: $1.76
IRFB4310Z
IRFB4310Z
Other

Data Sheet
Negotiable
