Product Summary

The upc1093t-e1-az is a Bipolar analog integrated circuit. The upc1093t-e1-az is adjustable precision shunt regulators with guaranteed thermal stability. The output voltage can be set to any value between reference voltage (2.495 V) and 36 V by two external resistors. The upc1093t-e1-az can apply to error amplifier of switching regulator.

Parametrics

upc1093t-e1-az absolute maximum ratings: (1)Cathode Voltage: 37 V; (2)Cathode Current: 150 mA; (3)Cathode-Anode Reverse Current: –100 mA; (4)Reference Voltage: 7 V; (5)Reference Input Current: 50 mA; (6)Reference-Anode Reverse Current: –10 mA; (7)Operating Ambient Temperature: –20 to +85 ℃; (8)Storage Temperature: –65 to +150 ℃.

Features

upc1093t-e1-az features: (1)High Accuracy VREF = 2.495 V ±2 %; (2)Low Temperature Coefficient DVREF/DT ≤100 ppm/℃; (3)Adjustable Output Voltage by two External Resistors VREF ≤VO ≤36 V; (4)Low Dynamic Impedance | ZKA | = 0.1 ΩTYP.

Diagrams

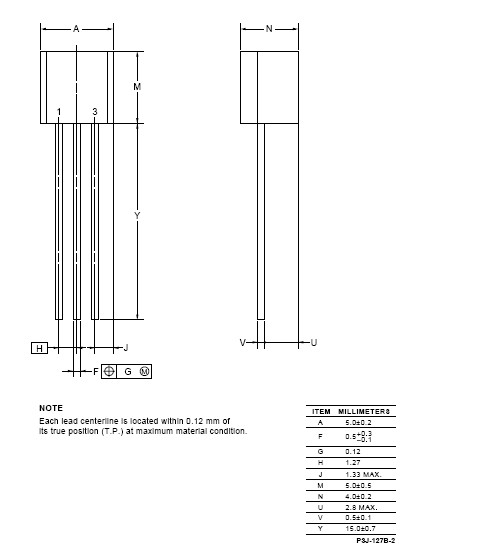

upc1093t-e1-az dimension
