Product Summary

The BC549C is an NPN transistor in a TO-92; SOT54 plastic package. The BC549C is ideal for Low noise stages in audio frequency equipment.

Parametrics

BC549C absolute maximum ratings: (1)VCBO collector-base voltage open emitter: 30 V; (2)VCEO collector-emitter voltage open base: 30 V; (3)VEBO emitter-base voltage open collector: 5 V; (4)IC collector current (DC): 100 mA; (5)ICM peak collector current: 200 mA; (6)IBM peak base current: 200 mA; (7)Ptot total power dissipation Tamb ≤ 25 °C;: 500 mW; (8)Tstg storage temperature: -65 to +150 °C; (9)Tj junction temperature: 150 °C; (10)Tamb ambient temperature: -65 to +150 °C.

Features

BC549C features: (1)Low current (max. 100 mA); (2)Low voltage (max. 45 V).

Diagrams

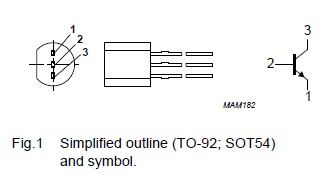

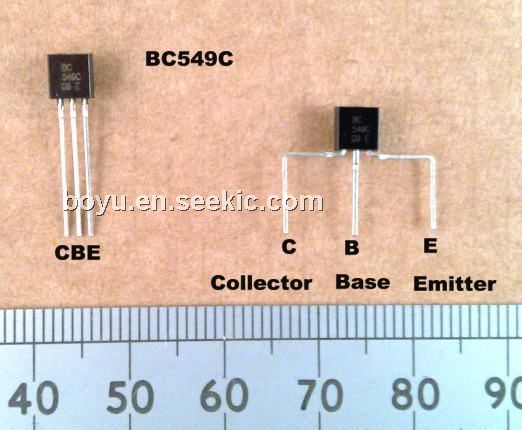

BC549C pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BC549C
BC549C
Fairchild Semiconductor
Transistors Bipolar (BJT) NPN 30V 100mA HFE/8
Data Sheet
0-1: $0.08
1-25: $0.08
25-100: $0.06
100-250: $0.05
BC549C_D11Z
BC549C_D11Z
Fairchild Semiconductor
Transistors Bipolar (BJT)
Data Sheet
Negotiable
BC549C_Q
BC549C_Q
Fairchild Semiconductor
Transistors Bipolar (BJT) NPN 30V 100mA HFE/8
Data Sheet
Negotiable
BC549CBU
BC549CBU
Fairchild Semiconductor
Transistors Bipolar (BJT) NPN 30V 100mA HFE/800
Data Sheet
0-1: $0.14
1-25: $0.12
25-100: $0.10
100-250: $0.08
BC549CG
BC549CG
ON Semiconductor
Transistors Bipolar (BJT) 100mA 30V NPN
Data Sheet
0-1: $0.17
1-25: $0.11
25-100: $0.09
100-500: $0.05
BC549CTA
BC549CTA
Fairchild Semiconductor
Transistors Bipolar (BJT) NPN 30V 100mA HFE/8
Data Sheet
0-1: $0.04
1-25: $0.04
25-100: $0.02
100-250: $0.02
BC549CTA_Q
BC549CTA_Q
Fairchild Semiconductor
Transistors Bipolar (BJT) NPN 30V 100mA HFE/8
Data Sheet
Negotiable
BC549CTFR
BC549CTFR
Fairchild Semiconductor
Transistors Bipolar (BJT) NPN Si Transistor Epitaxial
Data Sheet
Negotiable
