Product Summary

The TS5A3153DCUR is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 Vto 5.5 V. The device offers a low ON-state resistance and an excellent on-resistance matching with the break-before-make feature, to prevent signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable forportable audio applications. The applications of the TS5A3153DCUR include Cell Phones, PDAs, Portable Instrumentation, Audio and Video Signal Routing, Low-Voltage Data Acquisition System, Communication Circuits, Modems, Hard DrivesD, Computer Peripherals, Wireless Terminals and Peripherals.

Parametrics

TS5A3153DCUR absolute maximum ratings: (1)V+, Supply voltage range: -0.5 to 6.5V; (2)VNC, VNO, VCOM, Analog voltage range: -0.5V+ to +0.5V; (3)IK, Analog port diode current VNC, VNO, VCOM < 0: -50mA; (4)INC, INO, On-state switch current VNC, VNO, VCOM = 0 to V+: -200 to 200mA; (5)NCI, NOICOM, On-state peak switch current(6)VNC, VNO, VCOM = 0 to V+: -400 to 400mA; (6)VI, Digital input voltage range: -0.5 to 6.5V; (7)IIK, Digital input clamp current, VI < 0: -50mA; (8)I+, Continuous current through V+: 100mA; (9)IGND, Continuous current through GND: -100 to 100mA; (10)θJA, Package thermal impedance, DCT package: 220℃/W; DCU package: 227℃/W; YEA/YZA package: 140℃/W; YEP/YZP package: 102℃/W; (11)Tstg, Storage temperature range: -65 to 150℃.

Features

TS5A3153DCUR features: (1)Isolation in the Powered-Off Mode, V+ = 0; (2)Specified Break-Before-Make Switching; (3)Low ON-State Resistance (1 W); (4)Control Inputs Are 5.5-V Tolerant; (5)Low Charge Injection; (6)Excellent ON-State Resistance Matching; (7)Low Total Harmonic Distortion (THD); (8)1.65-V to 5.5-V Single-Supply Operation; (9)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class IID ESD Performance Tested Per JESD 22, 2000-V Human-Body Model(A114-B, Class II); 1000-V Charged-Device Model (C101).

Diagrams

TS5A3153DCUR pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

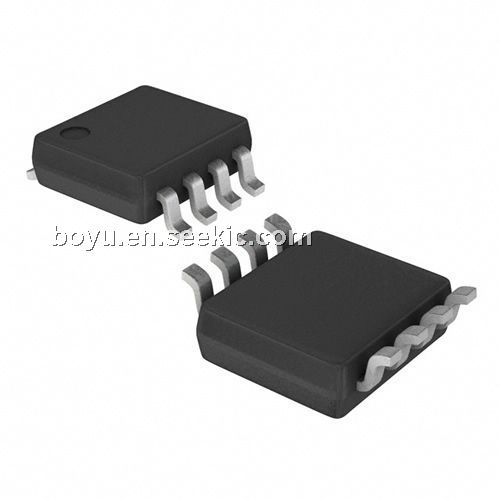

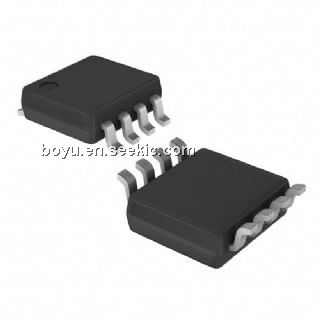

TS5A3153DCUR
TS5A3153DCUR

Texas Instruments

Analog Switch ICs 1Ohm SPDT Ana Sw S-Ch 2:1 Mult/DeMult

Data Sheet

0-1: $0.42
1-25: $0.33
25-100: $0.28
100-250: $0.25
TS5A3153DCURE4
TS5A3153DCURE4

Texas Instruments

Analog Switch ICs 1O SPDT Ana Sw

Data Sheet

0-2000: $0.15
2000-3000: $0.14
3000-6000: $0.13
6000-12000: $0.13
TS5A3153DCURG4
TS5A3153DCURG4

Texas Instruments

Analog Switch ICs 1O SPDT Ana Sw

Data Sheet

0-2000: $0.15
2000-3000: $0.14
3000-6000: $0.13
6000-12000: $0.13
