Product Summary

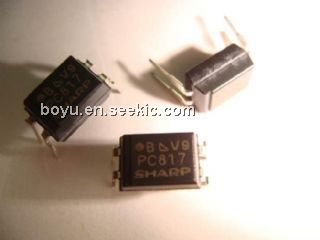

The PC817C is a High Density Mounting Type Photocoupler. The applicatiosn of the PC817C include Computer terminals, System appliances, measuring instruments, Registers, copiers, automatic vending machines and Electric home appliances.

Parametrics

PC817C absolute maximum ratings: (1)input, Forward current, IF: 50 mA; Peak forward current, IFM: 1 A; Reverse voltage, VR: 6 V; Power dissipation, P: 70 mW; (2)Output,Collector-emitter voltage, VCEO: 35 V; Emitter-collector voltage, VECO: 6 V; Collector current, IC: 50 mA; Collector power dissipation, PC: 150 mW; (3)Total power dissipation, Ptot: 200 mW; (4)*Isolation voltage, Viso: 5000Vrms; (5)Operating temperature, Topr: - 30 to + 100℃; (6)Storage temperature, Tstg: - 55 to + 125℃; (7)*3Soldering temperature, Tsol: 260℃.

Features

PC817C features: (1)current transfer ratio; (2)high isolation voltage between input and output; (3)compact dual-in-line package.

Diagrams

PC817C pin connection
