Product Summary

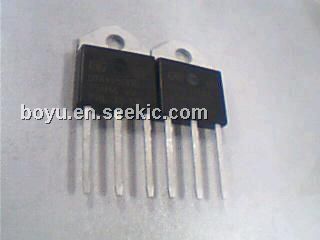

The BTA41-600 is a standard TRIAC. The BTA41-600 is available in high power packages. The BTA41-600 is suitable for general purpose AC switching. The BTA41-600 can be used as an ON/OFF function in application such as static circuits or for phase control operation in light dimmers, motor speed controllers.
Parametrics
BTA41-600 absolute maximum ratings: (1)IT, RMS on-stage current: 40A; (2)ITSM, non repetitive surge peak on-stage current when F=50Hz and t=20ms: 400A; when F=60Hz and t=16.7ms: 420A; (3)I2t value for fusing when tp=10ms: 880A2s; (4)dl/dt, critical rate of rise of on-stage current IG=2xIGT,tr≤100ns when F=120Hz, Tj=125℃: 20A/μs; (5)IGM, peak gate current, tp=20μs, TJ=125℃: 8A.
Features
BTA41-600 features: (1) IT (RMS): 40A; (2) VDRM/VRRM: 600 and 800V; (3) IGT (Q1): 50mA.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BTA41-600 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
BTA41-600A |
STMicroelectronics |
Triacs REORD 519-Q6040K7 TO-3P 40A 600V TRIAC |
Data Sheet |
Negotiable |
|
|||||||||||||
BTA41-600BRG |
STMicroelectronics |
Triacs 40 Amp 600 Volt |
Data Sheet |
|
|
|||||||||||||
BTA41-600B |
Other |
Data Sheet |
Negotiable |
|
