Product Summary

The tc7s66fu(t5lft) is a high speed C2MOS bilateral switch fabricated with silicon gate C2MOS technology. The tc7s66fu(t5lft)consists of a high speed switch capable of controlling either digital or analog signals while maintaining the C2MOs low power dissipation. Control input is provided to control the tc7s66fu(t5lft) .

Parametrics

tc7s66fu(t5lft) absolute maximum ratings: (1) DC supply voltage VCC: -0.5 to 13V; (2) Control input voltage VIN: -0.5 to Vcc +0.5V; (3) Swith I/O voltage VI/O: -0.5 to Vcc +0.5V; (4) Control diode current ICK: ±20mA; (5) Output diode current IIOK: ±20mA; (6) Through I/O current IT: ±12.5mA; (7) DC VCC/Ground Current ICC: ±25mA; (8) Power dissipation PD: 200mW; (9) Storage temperature Tstg: -65 to 150°C; (10) Lead temperature TL: 260°C.

Features

tc7s66fu(t5lft) features: (1) high speed: tpd=7ns (Typ.) at Vcc=5V; (2) low power dissipation: Icc=1μA (Max.) at Ta=25°C; (3) high noise immunity: VIH=VNIL=28% Vcc (min.) ; (4) low on resistance: RON=100Ω (Typ.) at VCC=9V; (5) Low T.H.D: THD=0.05% (Typ.) at Vcc=5V; (6) Pin and function compatible with TC4S66F.

Diagrams

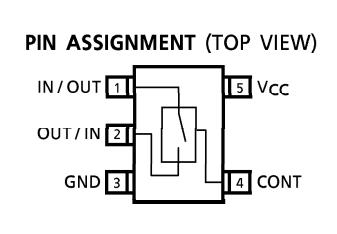

tc7s66fu Pin Assignment
