Product Summary
The SN74LVC04APWR is a hex inverter. The SN74LVC04APWR hex inverter contains six independent inverters designed for 1.65-V to 3.6-V VCC operation. The SN74LVC04APWR performs the Boolean function Y = A. Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of SN74LVC04APWR as translators in a mixed 3.3-V/5-V system environment.
Parametrics
SN74LVC04APWR absolute maximum ratings: (1)Supply voltage range: –0.5 to 6.5 V; (2)Input voltage range: –0.5 to 6.5 V; (3)Output voltage range: –0.5 to VCC + 0.5 V; (4)Input clamp current VI < 0: –50 mA; (5)Output clamp current VO < 0: –50 mA; (6)Continuous output current: ±50 mA; (7)Continuous current through VCC or GND: ±100 mA; (8)Package thermal impedance: NS package 76 ℃/W, PW package 113 ℃/W, RGY package 47 ℃/W; (9)Storage temperature range: –65 to 150 ℃; (10)Power dissipation TA = –40℃ to 125℃: 500 mW.
Features
SN74LVC04APWR features: (1)Operate From 1.65 V to 3.6 V; (2)Specified From –40℃ to 85℃, –40℃ to 125℃, and –55℃ to 125℃; (3)Inputs Accept Voltages to 5.5 V ; (4)Max tpd of 4.5 ns at 3.3 V; (5)Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25℃; (6)Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25℃; (7)Latch-Up Performance Exceeds 250 mA Per JESD 17; (8)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A), 1000-V Charged-Device Model (C101).

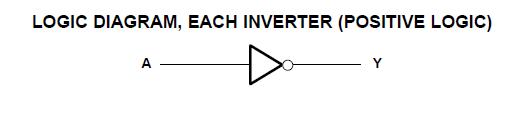

Diagrams
