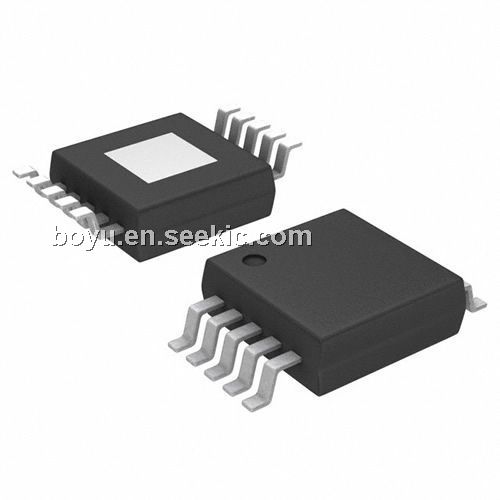

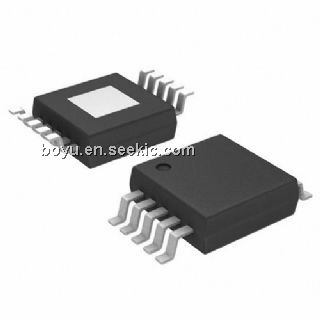

TPS54160QDGQRQ1

Product Summary

The TPS54160QDGQRQ1 is a 60-V 1.5-A step-down regulator with an integrated high-side MOSFET. Current-mode control provides simple external compensation and flexible component selection. A low-ripple pulse-skip mode reduces the no load, regulated output supply current to 116 μA. Using the enable pin, shutdown supply current is reduced to 1.3 μA. Undervoltage lockout is set internally at 2.5 V but can be increased using the enable pin. The output voltage startup ramp of the TPS54160QDGQRQ1 is controlled by the slow start pin that can also be configured for sequencing/tracking. An open-drain power good signal indicates the output is within 93% to 107% of its nominal voltage. The applications of the TPS54160QDGQRQ1 include 12-V, 24-V, and 48-V Industrial and Commercial, Aftermarket Automotive Accessories: Video, GPS, Entertainment.

Parametrics

TPS54160QDGQRQ1 absolute maximum ratings: (1)VIN, Input voltage, VIN: -0.3 V to 65 V; EN: -0.3 V to 5 V; (2)BOOT 73 V; VSENSE: -0.3 V to 3 V; COMP: -0.3 V to 3 V; PWRGD: -0.3 V to 6 V; SS/TR: -0.3 V to 3 V; RT/CLK: -0.3 V to 3.6 V; (3)VOUT, Output voltage: BOOT to PH: 8 V; PH: -0.6 V to 65 V; PH, 200 ns: -1 V to 65 V; PH, 30 ns: -2 V to 65 V; Maximum dc voltage, TJ = -40℃: -0.85 V; (4)VDIFF, Differential voltage PAD to GND: ±200 mV ; (5)ISOURCE, Source current, EN: 100 μA; BOOT: 100 mA; VSENSE: 10 μA; PH Current: Limit; RT/CLK: 100 μA; (6)ISINK, Sink current, VIN: Current Limit; COMP: 100 μA; PWRGD: 10 mA; SS/TR: 200 μA; (7)Human-Body Model (HBM) (AEC-Q100-002): 500 V; (8)ESD, Electrostatic discharge protection Machine Model (MM) (AEC-Q100-003): 50 V; (9)Charged-Device Model (CDM) (AEC-Q100-011): 1000 V; (10)TJ, Operating junction temperature range: -40℃ to 150℃; (11)TSTG, Storage temperature range: -65℃ to 150℃.

Features

TPS54160QDGQRQ1 features: (1)Qualified for Automotive Applications; (2)3.5-V to 60-V Input Voltage Range; (3)200-mΩ High-Side MOSFET; (4)High Efficiency at Light Loads With Pulse-Skipping Eco-mode Control Scheme; (5)116-μA Operating Quiescent Current; (6)1.3-μA Shutdown Current; (7)100-kHz to 2.5-MHz Switching Frequency; (8)Synchronizes to External Clock APPLICATIONS; (9)Adjustable Slow Start/Sequencing 12-V, 24-V, and 48-V Industrial and Commercial; (10)Undervoltage and Overvoltage Power Good Low Power Systems Output; (11)Adjustable Undervoltage Lockout (UVLO) Voltage and Hysteresis; (12)0.8-V Internal Voltage Reference.

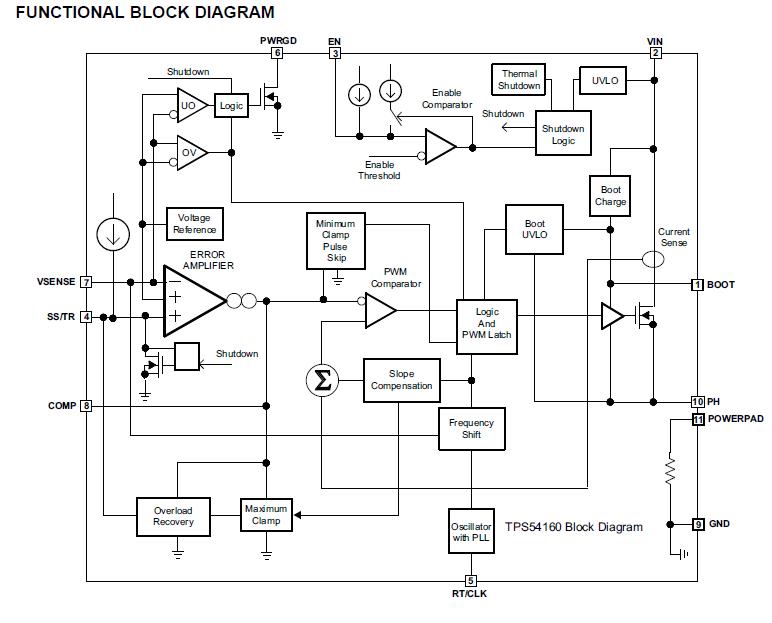

Diagrams
