Product Summary

The nzl6v8axv3t1g is a dual monolithic silicon ESD protection diode. The nzl6v8axv3t1g is intended for use in voltage-and ESD-sensitive equipment such as computers, printers, business machines, communication systems, medicalequipment and other applications. The dual junction common anode design of the nzl6v8axv3t1g protects two separate lines using only one package. The nzl6v8axv3t1g is ideal for situations where board space is at a premium.

Parametrics

nzl6v8axv3t1g absolute maximum ratings: (1) Total Power Dissipation on FR-5 Board@TA=25°C Derate above 25°C PD: 240mW; (2) Thermal Resistance Junction to Ambient RθJA: 525°C/W; (3) Junction and Storage Temperature Range Tj, Tstg: -55 to +150°C; (4) Lead Solder Temperature-Maximum (10 Second Duration TL: 260°C; (5) IEC61000-4-2 (Contact) : 10kV.

Features

nzl6v8axv3t1g features: (1) SC-89 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration; (2) ESD Rating of Class N (exceeding 16 kV) per the Human Body Model; (3) Meets IEC61000-4-2 Level 4; (4) Low Leakage < 5.0 μA; (5) These are Pb-Free Devices.

Diagrams

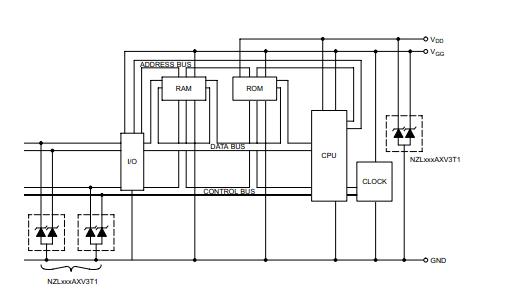

nzl6v8axv3t1g Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
NZL6V8AXV3T1G
NZL6V8AXV3T1G
ON Semiconductor
Zener Diodes ZEN TVS DIODE 6.8V
Data Sheet
0-1: $0.24
1-25: $0.14
25-100: $0.11
100-500: $0.07
