Product Summary

The TLV431AIDBZR is a low-voltage adjustable precision shunt regulator.

Parametrics

TLV431AIDBZR absolute maximum rating: (1)Cathode voltage, VKA: 7V; (2)Continuous cathode current range, IK: -20mA to 20mA; (3)Reference current range, Iref: -0.05mA to 3mA; (4)Package thermal impedance: 97℃/W; (5)Operating virtual junction temperature: 150℃; (6)Storage temperature range, Tstg: -65 to 150℃.

Features

TLV431AIDBZR features: (1)Low-voltage, VREF=1.24V; (2)Adjustable output voltage, VO=VREF to 6V; (3)Reference voltage tolerances at 25℃: 1%; (4)Typical temperature drift; (5)Low operational cathode current: 80μA; (6)0.25Ω typical output impedance; (7)Ultra-small SC-70 package offers 40% smaller footprint than SOT-23-3.

Diagrams

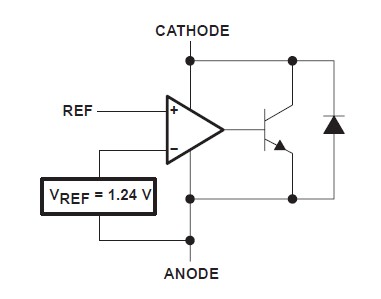

TLV431AIDBZR pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TLV431AIDBZR
TLV431AIDBZR

Texas Instruments

Voltage & Current References Lo Vtg Adj Precision Shunt Regulator

Data Sheet

0-1: $0.38
1-25: $0.27
25-100: $0.23
100-250: $0.20
TLV431AIDBZRG4
TLV431AIDBZRG4

Texas Instruments

Voltage & Current References Lo Vtg Adj Precision Shunt Regulator

Data Sheet

0-2000: $0.18
2000-3000: $0.17
3000-6000: $0.16
6000-12000: $0.15
