Product Summary

The MC33153P is an IGBT driver for high power applications that include ac induction motor control, brushless dc motor control and uninterruptable power supplies. Although designed for driving discrete and module IGBTs, the MC33153P offers a cost effective solution for driving power MOSFETs and Bipolar Transistors. Device protection features include the choice of desaturation or overcurrent sensing and undervoltage detection. The MC33153P is available in dual in line and surface mount packages.

Parametrics

MC33153P absolute maximum ratings: (1)Power Supply Voltage VCC to VEE Kelvin Ground to VEE VCC - VEE KGND - VEE: 20 V; (2)Logic Input Vin: VEE -0.3 to VCC V; (3)Current Sense Input VS: -0.3 to VCC V; (4)Blanking/Desaturation Input VBD: -0.3 to VCC V; (5)Gate Drive Output Source IO: Current 1.0 A, Sink Current 2.0A, Diode Clamp Current 1.0A; (6)Fault Output IFO: Source Current 25mA, Sink Current 10 mA; (7)Maximum Power Dissipation @ TA = 50℃ PD: 1.0W; (8)Thermal Resistance, Junction-to-Air RθJA: 100℃/W; (9)Operating Junction Temperature TJ: +150 ℃; (10)Operating Ambient Temperature TA: -40 to +105℃; (11)Storage Temperature Range Tstg: -65 to +150℃.

Features

MC33153P features: (1)High Current Output Stage: 1.0 A Source/2.0 A Sink; (2)Protection Circuits for Both Conventional and Sense IGBTs; (3)Programmable Fault Blanking Time; (4)Protection against Overcurrent and Short Circuit; (5)Undervoltage Lockout Optimized for IGBT’s; (6)Negative Gate Drive Capability; (7)Cost Effectively Drives Power MOSFETs and Bipolar Transistors; (8)Pb-Free Packages are Available.

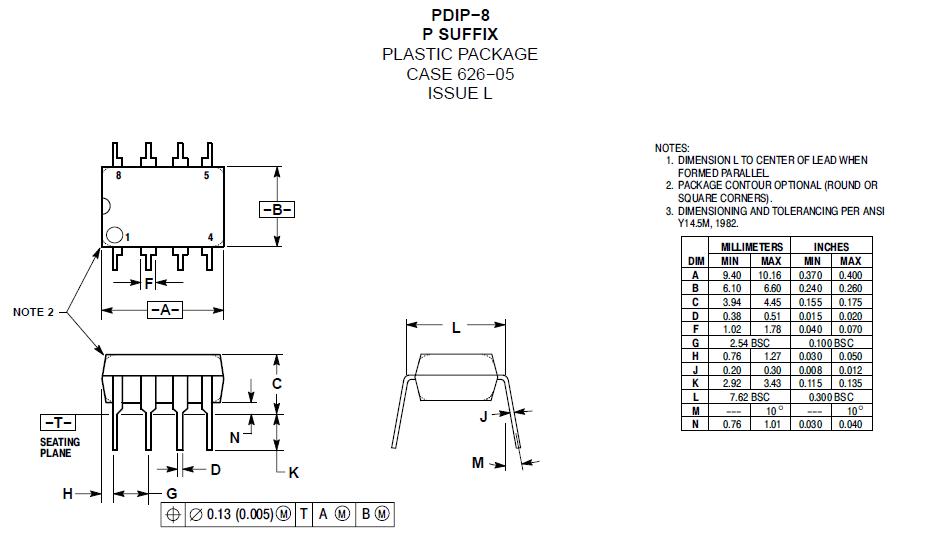

Diagrams

MC33153P pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MC33153P
MC33153P

ON Semiconductor

Motor / Motion / Ignition Controllers & Drivers 1A Source/2A Sink

Data Sheet

Negotiable
MC33153PG
MC33153PG

ON Semiconductor

Motor / Motion / Ignition Controllers & Drivers 1A Source/2A Sink

Data Sheet

0-1: $1.33
1-25: $1.11
25-100: $0.84
100-500: $0.71
