Product Summary
The mp1593dn-c061-lf-z is a Step-Down Converter. The mp1593dn-c061-lf-z is a step-down regulator with an internal Power MOSFET. It achieves 3A continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown. Adjustable soft-start reduces the stress on the input source at turn-on. In shutdown mode the regulator draws 20μA of supply current. The mp1593dn-c061-lf-z requires a minimum number of readily available external components to complete a 3A step down DC to DC converter solution. The applications of the mp1593dn-c061-lf-z include Distributed Power Systems, Battery Chargers, Pre-Regulator for Linear Regulators, Flat Panel TVs, Set-Top Boxes, Cigarette Lighter Powered Devices and DVD/PVR Devices.
Parametrics
mp1593dn-c061-lf-z absolute maximum ratings: (1)Supply Voltage: –0.3V to 30V; (2)Switch Voltage: –0.5V to VIN + 0.3V; (3)Boost Voltage: VSW – 0.3V to VSW + 6V; (4)All Other Pins: –0.3V to +6V; (5)Junction Temperature: 150℃; (6)Lead Temperature: 260℃; (7)Storage Temperature: –65℃ to 150℃.
Features
mp1593dn-c061-lf-z features: (1)3A Output Current; (2)Programmable Soft-Start; (3)100mΩ Internal Power MOSFET Switch; (4)Stable with Low ESR Output Ceramic Capacitors; (5)Up to 95% Efficiency; (6)20μA Shutdown Mode; (7)Fixed 385KHz Frequency; (8)Thermal Shutdown; (9)Cycle-by-Cycle Over Current Protection; (10)Wide 4.75V to 28V Operating Input Range; (11)Output Adjustable from 1.22V; (12)Under Voltage Lockout; (13)Available in 8-Pin SOIC Package.

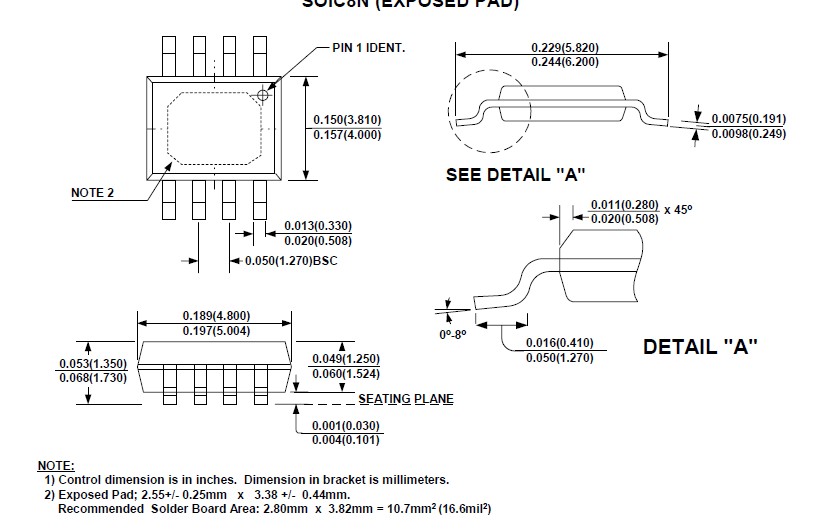

Diagrams
