Product Summary

The TS27L4CN is a precision very low power cmos quad operational amplifier. The TS27L4CN is designed to operate with single or dual supplies. The TS27L4CN uses the ST silicon gate CMOS process allowing an excellent consumption-speed ratio. These series are ideally suited for low consumption applications.

Parametrics

TS27L4CN absolute maximum ratings: (1)VCC + Supply Voltage: 18 V; (2)Vid Differential Input Voltage: ±18 V; (3)Vi Input Voltage: -0.3 to 18 V; (4)Io Output Current for VCC +≥ 15V: ±30 mA; (5)Iin Input Current: ±5 mA; (6)Toper Operating Free-Air Temperature Range: 0 to +70°C; (7)Tstg Storage Temperature Range: -65 to +150 °C.

Features

TS27L4CN features: (1)very low power consumptio: 10μA/op; (2)output voltage can swing to ground; (3)excellent phase margin on capacitive loads; (4)stable and low offset voltage; (5)three input offset voltage selections.

Diagrams

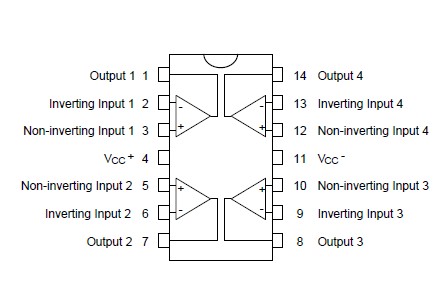

TS27L4CN pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TS27L4CN
TS27L4CN

STMicroelectronics

Operational Amplifiers - Op Amps Quad Prec Low-Power

Data Sheet

0-1: $0.35
1-10: $0.31
10-100: $0.24
100-250: $0.21
