MIC4427BM TR

lowside MOSFET driver, 22V, 7W, 500mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.49~0.49 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1859 :	0.49 / Piece

PartNumber:: MIC4427BM TR

Brand:: Micrel Semiconductor - Micrel | Pack: SOP | D/C: 02+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-08

From Other Seller

Part Number:MIC4427BM TR
US $0.49 - 0.49
Quantity:

piece

Product Summary

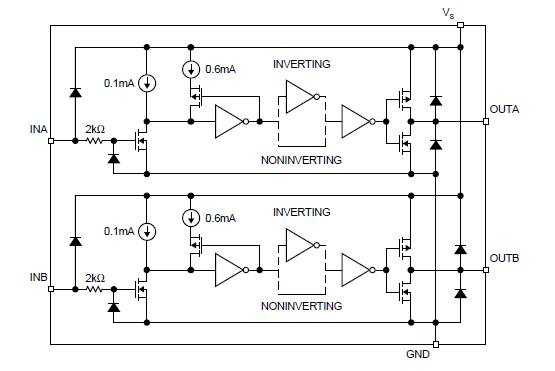

The mic4427bm tr is a highly-reliable dual lowside MOSFET driver fabricated on a BiCMOS/DMOS process for low power consumption and high efficiency. The driver translates TTL or CMOS input logic levels to output voltage levels that swing within 25mV of the positive supply or ground. Comparable bipolar devices are capable of swinging only to within 1V of the supply. The applications of the mic4427bm tr include MOSFET driver, Clock line driver, Coax cable driver, Piezoelectic transducer driver.

Parametrics

mic4427bm tr absolute maximum ratings: (1)Supply Voltage (VS): +22V; (2)Input Voltage (VIN): VS + 0.3V to GND -5V; (3)Junction Temperature (TJ): 150℃; (4)Storage Temperature: -65℃ to +150℃; (5)Lead Temperature (10 sec.): 300℃.

Features

mic4427bm tr features: (1)Bipolar/CMOS/DMOS construction; (2)Latch-up protection to >500mA reverse current; (3)1.5A-peak output current; (4)4.5V to 18V operating range; (5)Low quiescent supply current, 4mA at logic 1 input; 400mA at logic 0 input; (6)Switches 1000pF in 25ns; (7)Matched rise and rall times; (8)7W output impedance; (9)< 40ns typical delay; (10)Logic-input threshold independent of supply voltage; (11)Logic-input protection to ?V; (12)6pF typical equivalent input capacitance; (13)25mV max. output offset from supply or ground; (14)Replaces MIC426/427/428 and MIC1426/1427/1428; (15)Dual inverting, dual noninverting, and inverting/noninverting configurations; (16)ESD protection.
