Product Summary

The MC14051BFR2 is an analog multiplexer.It is digitally-controlled analog switche. The MC14051BFR2 effectively implements an SP8T solid state switch. The MC14051BFR2 feature low ON impedance and very low OFF leakage current. Control of analog signals up to the complete supply voltage range can be achieved.

Parametrics

MC14051BFR2 absolute maximum ratings: (1)DC Supply Voltage Range (Referenced to VEE, VSS . VEE): -0.5 to +18.0 V; (2)Input or Output Voltage Range (DC or Transient)(Referenced to VSS for Control Inputs and VEE for Switch I/O): -0.5 to VDD + 0.5 V; (3)Input Current (DC or Transient)per Control Pin: +10 mA; (4)Switch Through Current: ±25 mA; (5)Power Dissipation per Package (Note 1): 500 mW; (6)Ambient Temperature Range: -55 to +125 °C; (7)Storage Temperature Range: -65 to +150 °C; (8)Lead Temperature (8-Second Soldering): 260 °.

Features

MC14051BFR2 features: (1)Triple Diode Protection on Control Inputs; (2)Switch Function is Break Before Make; (3)Supply Voltage Range = 3.0 Vdc to 18 Vdc; (4)Analog Voltage Range (VDD - VEE)= 3.0 to 18 V Note: VEE must be  VSS; (5)Linearized Transfer Characteristics; (6)Low-noise - 12 nV//Cycle, f . 1.0 kHz Typical; (7)Pin-for-Pin Replacement for CD4051, CD4052, and CD4053; (8)For 4PDT Switch, See MC14551B; (9)For Lower RON, Use the HC4051, HC4052, or HC4053 High-Speed CMOS Devices; (10)Pb-Free Packages are Available.

Diagrams

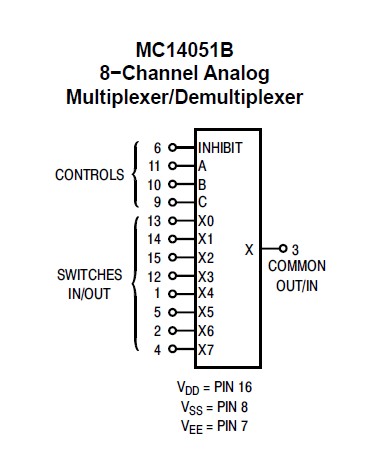

MC14051BFR2 pin connection
