Product Summary

The SP3232ECA-L is an RS-232 transceiver solution intended for portable or handheld applications such as notebook or palmtop computers. The SP3232ECA-L has a high-efficiency, charge-pump power supply that requires only 0.1µF capacitors in 3.3V operation. This charge pump allows the SP3232ECA-L to deliver true RS-232 performance from a single power supply ranging from +3.3V to +5.0V. The SP3232ECA-L is ideal for portable or hand-held applications such as notebook or palmtop computers. The ESD tolerance of the SP3232ECA-L is over ±15kV for both Human Body Model and IEC1000-4-2 Air discharge test methods.

Parametrics

SP3232ECA-L absolute maximum ratings: (1)VCC: -0.3V to +6.0V; (2)V+ (NOTE 1): -0.3V to +7.0V; (3)V- (NOTE 1): +0.3V to -7.0V; (4)RxIN: ±15V; (5)Storage Temperature: -65℃ to +150℃.

Features

SP3232ECA-L features: (1)Meets true EIA/TIA-232-F Standards from a +3.0V to +5.5V power supply; (2)Minimum 120Kbps Data Rate Under Full Load; (3)Interoperable with RS-232 down to +2.7V power source.

Diagrams

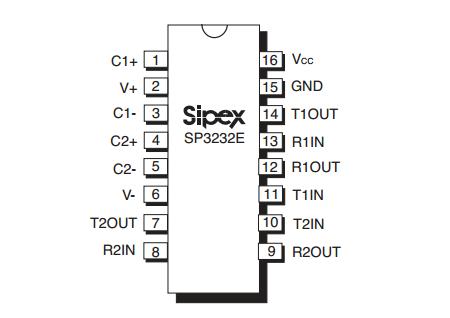

SP3232ECA-L pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

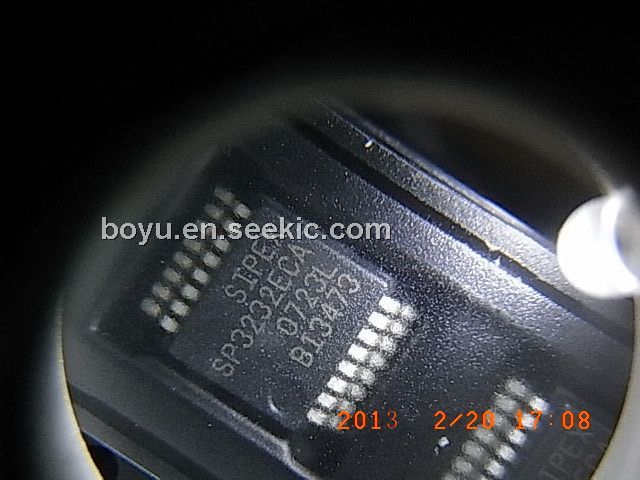

SP3232ECA-L
SP3232ECA-L

Exar

RS-232 Interface IC RS232 120 kbps temp 0C to 70C

Data Sheet

0-1: $0.91
1-25: $0.72
25-100: $0.63
100-250: $0.56
SP3232ECA-L/TR
SP3232ECA-L/TR

Exar

RS-232 Interface IC TRUE +3V-+5.5V RS-232

Data Sheet

0-940: $0.38
940-1000: $0.33
1000-1500: $0.33
1500-2000: $0.30
