Product Summary

The M5216FP is a semiconductor intergrated circuit designed as a high-output and high-speed operational amplifer for use in high-performance headphone amplifers and mizer amplifers found in cassetle decks. The M5216FP comes in an 8-pin SIP, DIP or FP. Applications of the M5216FP include: high-performance headphone amplifers in VTRs, tape decks and stereo cassettle tape recorders.

Parametrics

M5216FP absolute maximum ratings: (1) supply voltage Vcc: ±18V; (2) Load current ILP: ±100mA; (30 Differential input voltage: ±30V; (4) Common input voltage: ±15V; (5) Power dissipation Pd: 800mW; (6) Thermal derating: 6.25mW/°C; (7) Ambient temperature: -20 to +75°C; (8) Storage temperature: -55 to +125°C.

Features

M5216FP features: (1) large current capacity ILP: ±100mA; (2) high power output; (3) high slew rate, high fT: SR=3.0V/μs, fT=10MHz (typ.) ; (4) Low noise (Rs=1kΩ) FLAT: VNI=1.8μVrms (typ.) ; (5) Low supply voltage drive possible; (6) high allowable power: Pd=800mW (SIP) .

Diagrams

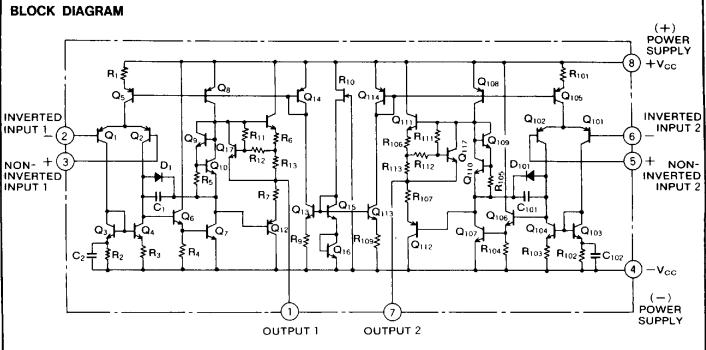

m5216fp Block Diagram
