Product Summary

The M1543B1 is a digital output system. Designed for PC board mounting, it is available with linear or rotary scales. Mercurys space-saving, integrated configuration gives OEM system designers a breakthrough in performance.

Features

M1543B1 features: (1)Small PCB mount sensor; (2)Sensor is 5.6mm (H)x 12.7mm (W)x 15.2mm (L)and weighs 2.6g; (3)Resolution: Linear 5, 2.5, 1.0, 0.5μm; Rotary 6,600 to 655,000 CPR; (4)Digital Differential Outputs: A-quad-B and Index window; (5)Bi-directional Index window signal; (6)Index mark at the center or end of the glass scale (linear).

Diagrams

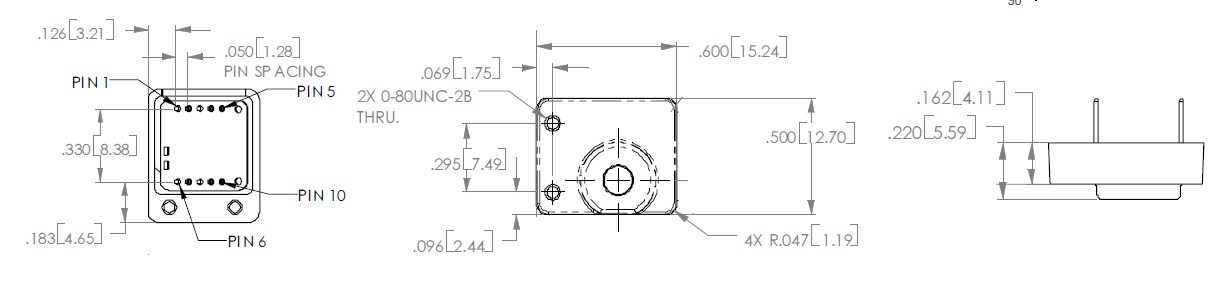

M1543B1 pin connection
