Product Summary

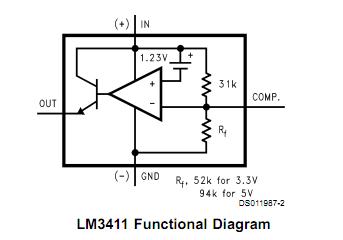

The lm3411am5x-3.3 is a low power fixed-voltage (3.3V or 5.0V) precision shunt regulator designed specifically for driving an optoisolator to provide feedback isolation in a switching regulator. The lm3411am5x-3.3 circuitry includes an internally compensated op amp, a bandgap reference, NPN output transistor, and voltage setting resistors. The applications of the lm3411am5x-3.3 are (1)Secondary controller for isolated DC/DC PWM switching regulators systems; (2)Use with LDO regulator for high-precision fixed output regulators; (3)Precision monitoring applications; (4)Use with many types of regulators to increase precision and improve performance.

Parametrics

lm3411am5x-3.3 absolute maximum ratings: (1)Input Voltage V(IN): 20V; (2)Output Current: 20 mA; (3)Junction Temperature: 150℃; (4)Storage Temperature: -65 to +150℃; (5)Lead Temperature Vapor Phase (60 sec.): +215℃; Infrared (15 sec.): +220℃; (6)Power Dissipation (TA = 25℃): 300 mW.

Features

lm3411am5x-3.3 features: (1)Fixed voltages of 3.3V and 5.0V with initial tolerance of ±1% for standard grade and ±0.5% for A grade; (2)Custom voltages available (3V–17V); (3)Wide output current range, 20 μA–15 mA; (4)Low temperature coefficient; (5)Available in 5-lead SOT23-5 surface mount package (tape and reel).

Diagrams

lm3411am5x-3.3 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM3411AM5X-3.3
LM3411AM5X-3.3
National Semiconductor (TI)
Voltage & Current References
Data Sheet
0-3000: $0.43
LM3411AM5X-3.3/NOPB
LM3411AM5X-3.3/NOPB
National Semiconductor (TI)
Voltage & Current References
Data Sheet
0-2410: $0.44
2410-3000: $0.43
